SS wedge wire screen nozzle for liquid filtration

More Views

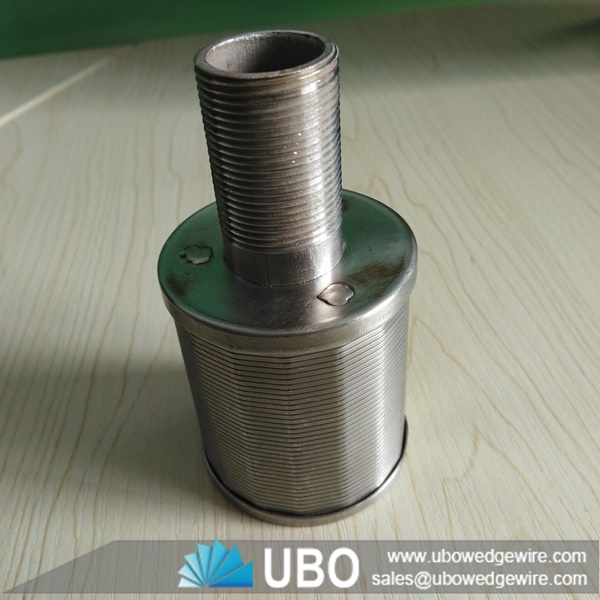

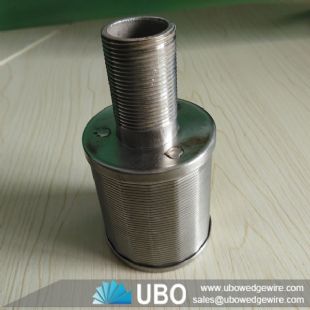

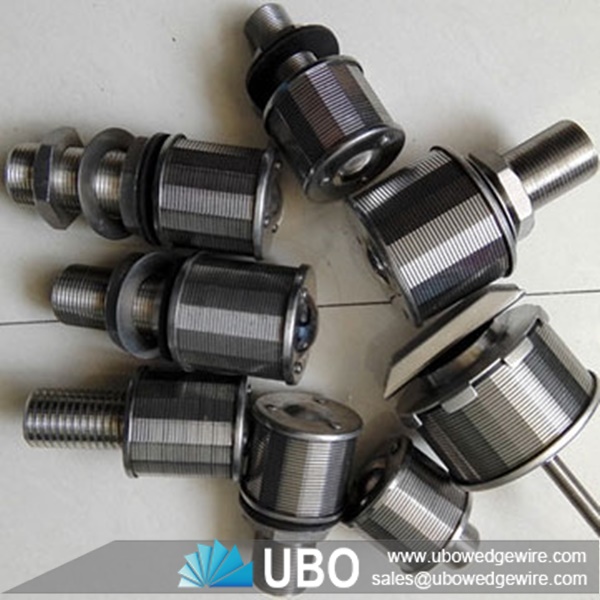

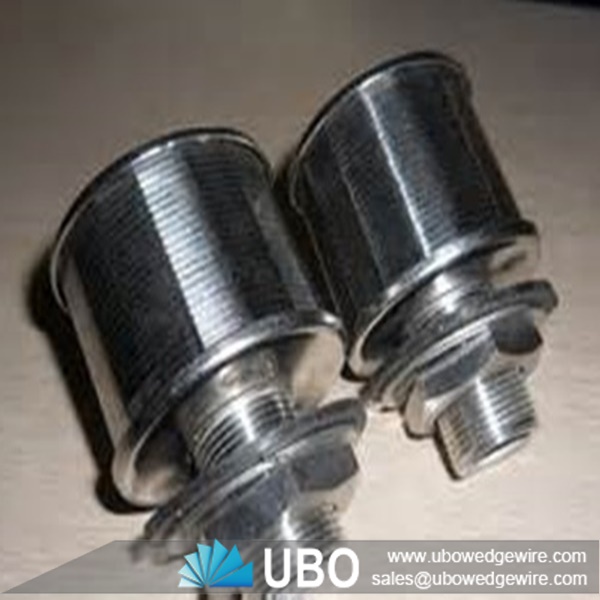

SS wedge wire screen nozzle for liquid filtrationSS wedge wire screen nozzle for liquid filtrationSS wedge wire screen nozzle for liquid filtration

SS wedge wire screen nozzle for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire screen nozzle for liquid filtration

SS wedge wire screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

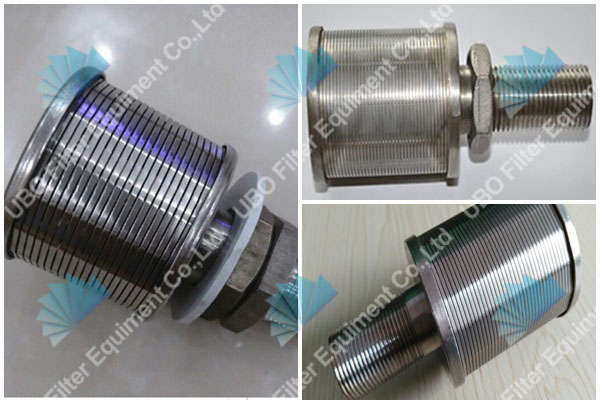

SS wedge wire screen nozzle for liquid filtration

Features of SS wedge wire screen nozzle for liquid filtration

1) We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities

3) After work for a period of time, the filter can be back flush.It can use for many times.

4) Filtering direction from outside to inside (FOTI)

Advantages of SS wedge wire screen nozzle for liquid filtration


-- Composed of surface profile

-- High open area, non clogging filter surface

-- Spirally wrapped around the axial support profile

-- Accurate, narrow slot openings

-- Triangular wedge wire design creates orifice effect

-- Cake discharge by back washing

Applications of SS wedge wire screen nozzle for liquid filtration

Wedge wire Screen Filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen .

SS wedge wire screen nozzle for liquid filtration

Specifications of SS wedge wire screen nozzle for liquid filtration:

Specification of Wedge Wire Nozzle

Item

D (mm)

H (mm)

L (mm)

Slot size (mm)

Flow area (mm2)

WWNS-01

45

30

180

0.18-0.5

380-493

WWNS-02

45

40

190

0.18-0.5

551-690

WWNS-03

53

40

190

0.18-0.5

453-597

WWNS-04

53

50

200

0.18-0.5

680-710

WWNS-05

53

40

235

0.18-0.5

800-920

WWNS-06

57

40

190

0.18-0.5

560-670

WWNS-07

57

50

200

0.18-0.5

780-905

SS wedge wire screen nozzle for liquid filtration

Packaging and Transportation of SS wedge wire screen nozzle for liquid filtration:

transportation
