Quality Wedge Wire Screen Manufacturer in China

Corrosion resistance wedge wire screen fish diversion screen panel

More Views

Corrosion resistance wedge wire screen fish diversion screen panelCorrosion resistance wedge wire screen fish diversion screen panelCorrosion resistance wedge wire screen fish diversion screen panel

Corrosion resistance wedge wire screen fish diversion screen panel

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Corrosion resistance wedge wire screen fish diversion screen panel

Wedge wire Flat screens are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Flat panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

Corrosion resistance wedge wire screen fish diversion screen panel

Applications for corrosion resistance wedge wire screen fish diversion screen panel:

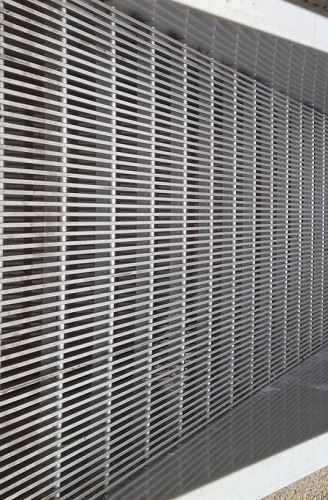

Flat wedge wire screens are used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Advantages for corrosion resistance wedge wire screen fish diversion screen panel:

Our EM hybrid processing techniques give our screens several competitive advantages, including:

-- High weld strength

-- Higher accuracy and consistency of wire gap

-- Lower surface roughness

-- Single piece cylinder construction (As opposed to welded patched cylinders)

-- Axially-seamless cylinder construction

Characteristic for Corrosion resistance wedge wire screen fish diversion screen panel:

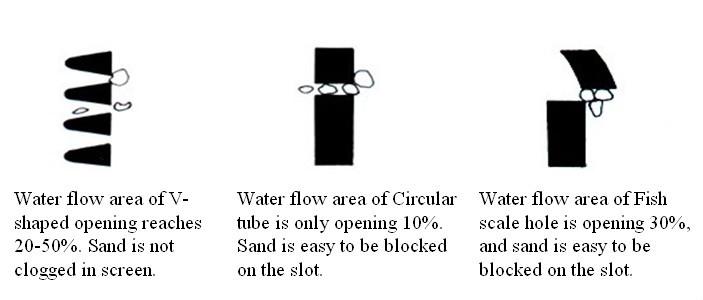

1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

Corrosion resistance wedge wire screen fish diversion screen panel

Corrosion resistance wedge wire screen fish diversion screen panel

Specifications of Corrosion resistance wedge wire screen fish diversion screen panel:

Corrosion resistance wedge wire screen fish diversion screen panel

V-Wire Wrap Water Well Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Packaging and Transportation of Corrosion resistance wedge wire screen fish diversion screen panel:

Corrosion resistance wedge wire screen fish diversion screen panel
