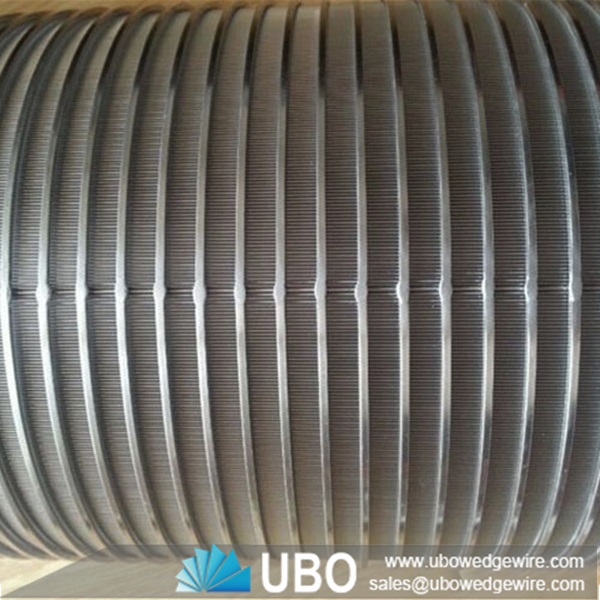

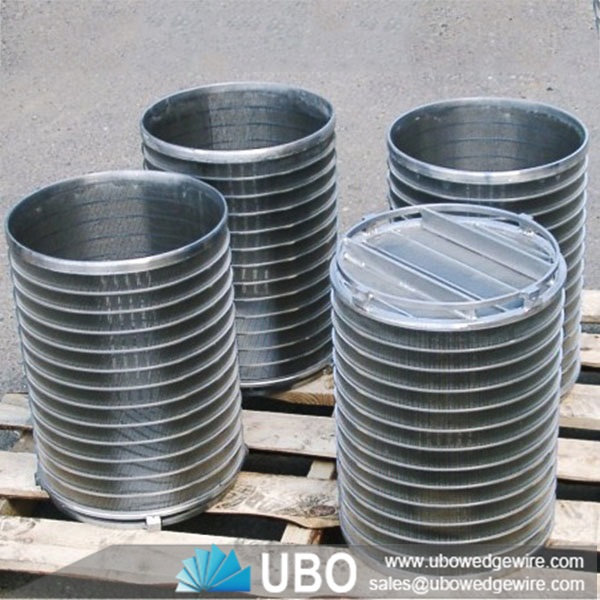

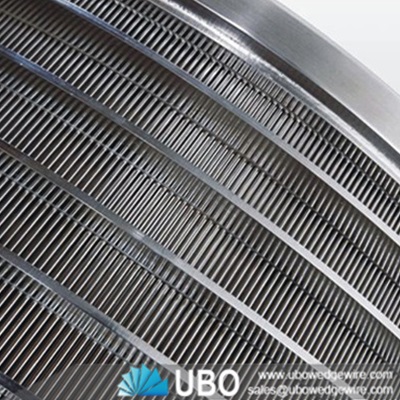

ASTM 316 cylinder screen strainer basket used as Pressure Screens

More Views

ASTM 316 cylinder screen strainer basket used as Pressure ScreensASTM 316 cylinder screen strainer basket used as Pressure ScreensASTM 316 cylinder screen strainer basket used as Pressure Screens

ASTM 316 cylinder screen strainer basket used as Pressure Screens

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of ASTM 316 cylinder screen strainer basket used as Pressure Screens

Screw presses are used in a wide variety of dewatering applications, often in the same applications as belt presses, centrifuges, and filter presses. The screw press is a simple, slow moving mechanical device. Dewatering is continuous and is accomplished by gravity drainage at the inlet end of the screw and then by reducing the volume as the material being dewatered is conveyed from the inlet to the discharge end of the screw press.

Application for ASTM 316 cylinder screen strainer basket used as Pressure Screens:

Frequently used as: Strainer Baskets , Filtering Elements , Rotary drum Screens, Dewatering Screens,Pressure Screens , Screw press Screens for water clarification, cleaning, dewatering, pulp screening and fractionation, fiber retention, drying and other liquid/solid separation processes.

Features for Stainless steel wedge wire dual screen for water treatment:

1) grille and current form about 35 degree Angle, because the formation of the baffle, even thickness is less than many of the dirt-grille can also be isolated.

2) grille equipped with shower, also the net function.

3) cylindrical structure than a traditional grille flow grille increases, the head loss is reduced, and the accumulation of plane before grille decrease.

4) all contact with water parts are made by stainless steel to make, and after pickling passivation treatment, in all the civil wastewater and most industrial water, as performance is strong, long service life.

5) through the integration of the grille salvage, transportation, squeezing processing, already save cover an area of an area, also reduced the waste of subsequent treatment.

6) almost don't need maintenance, rotate point without refueling, drive less number of cheer.

Working principle for ASTM 316 cylinder screen strainer basket used as Pressure Screens:

The equipment and the horizontal plane into 35 degree Angle installed in the canal, the wastewater from the end of the drum drum inflows, drum to 4.6 r/min speed rotation, over the top of the drum are nylon brush and rinse water spray nozzle, slag removal and through the gate will run dry, helical conveyor crowded dehydration, shipped to the top row hopper, the conveyor away.



ASTM 316 cylinder screen strainer basket used as Pressure ScreensASTM 316 cylinder screen strainer basket used as Pressure Screens

Specifications of ASTM 316 cylinder screen strainer basket used as Pressure Screens:

ASTM 316 cylinder screen strainer basket used as Pressure Screens



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

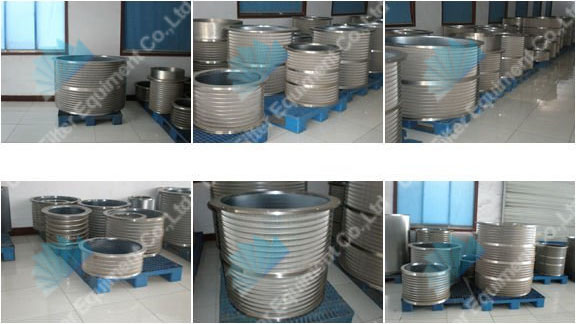

Packaging and Transportation of ASTM 316 cylinder screen strainer basket used as Pressure Screens:

ASTM 316 cylinder screen strainer basket used as Pressure Screens
