wedge wire screen for surface water

More Views

wedge wire screen for surface waterwedge wire screen for surface waterwedge wire screen for surface water

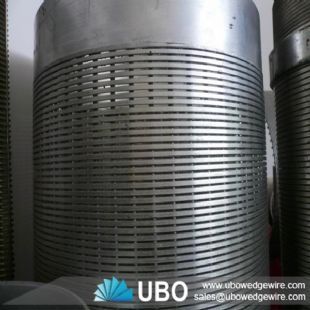

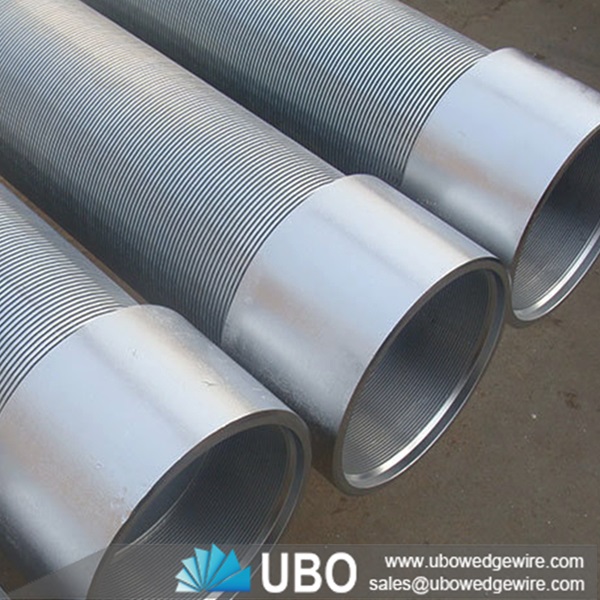

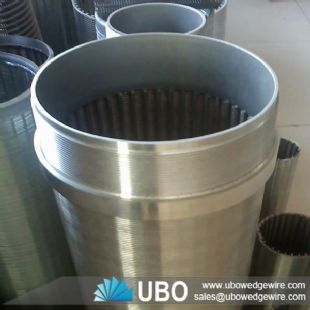

wedge wire screen for surface water

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application:waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire screen for surface water

    Stainless Steel Wedge Wire Screen Filter Johnson Screen Pipe is a pipe base wire wrapped screen available in several designs, customized to well demands.
   These screens are used in stand-alone completions with well sorted formations or in combination with gravel pack completions.

Application for wedge wire screen for surface water:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Feature for wedge wire screen for surface water:

Non-clogging surface .
Large open area .
Low pressure drop .
Hydraulic efficiency .
High flow rates .
Mechanical strength .
Abrasion-resistant .
Easy cleaning .

Advantage for wedge wire screen for surface water:

1. The water well screens have astructure and high open area;as well as accurate slot dimension.
2. Ladder-like wire welded screens have the features of easy backwashing,last long, satefy,heat -resising,anti-corrosive and reliability as well as low comprehensive cost.
3. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
4. V shaped profile wire which avoids clogging and ensures an uninterrupted flow.

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> for surface water

The specifications of the wedge wire screen for surface water:

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> for surface water



Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length up to 6m
Diameter from 25mm to 1200mm.
End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the wedge wire screen for surface water:

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> for surface water of transportation
