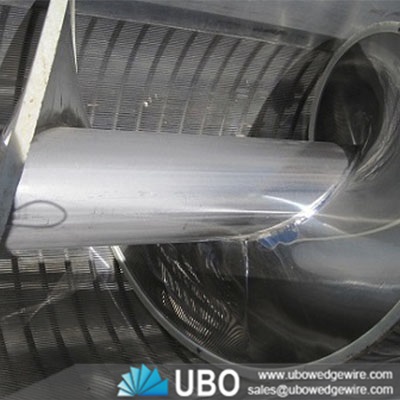

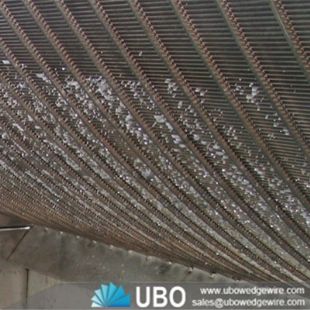

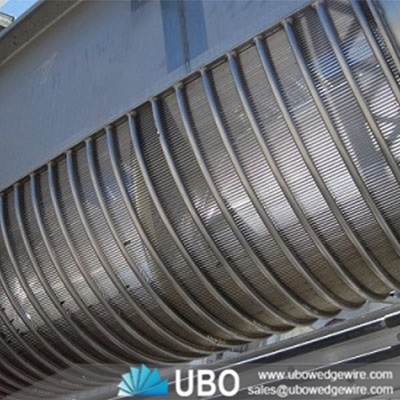

pressure flip screen wedge wire rotary drum screenpressure flip screen wedge wire rotary drum screenpressure flip screen wedge wire rotary drum screen

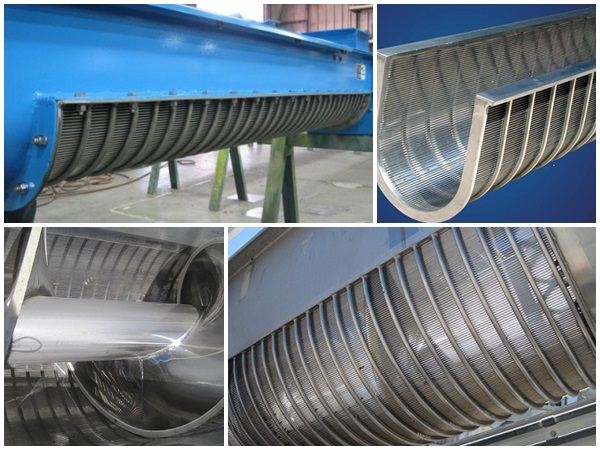

pressure flip screen wedge wire rotary drum screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:water strainer
Application:food processing, waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the pressure flip screen wedge wire rotary drum screen

Drum screen used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article.

Application for pressure flip screen wedge wire rotary drum screen:

Trommel drum screen can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

The features for pressure flip screen wedge wire rotary drum screen:

1.Drum screen mesh is not easy to jam.
2.Smooth operation, low noise.
3.Simple structure, convenient maintenance.
4.Sieve tube can be closed, airtight dust easily.
5.The whole machine has high reliability, one-time investment is less.
6.Adopts special mesh, high screening efficiency, long service life.

Advantages for pressure flip screen wedge wire rotary drum screen:

1. Many wing pieces, no winding, highly efficient rotary drum type rotor.
2. Pulp consistency can reach 2.5~4%, reduce water consumption and fiber loss of production process.
3. Heavy impurity discharge tube, ensure the security of the sieve drum operation.
4. Advanced structure, strong and durable, easy dismounting, low energy consumption, less wastage fiber.
5. Equipped with automatic oiling and mechanical seal water monitoring device, high degree of automation.
6. Compact structure, small power, high output.
7. 1 year warranty and best after-sale service

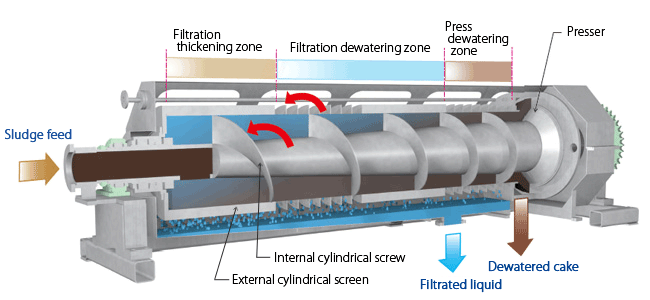

Working Principle for pressure flip screen wedge wire rotary drum screen:

GTS Series wedge wire screen drum screen utilize Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.

pressure flip screen wedge wire rotary drum screen

pressure flip screen wedge wire rotary drum screen

The specifications of the pressure flip screen wedge wire rotary drum screen:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings
