wedge wire screen,wedge wire screens,wedge wire screen manufacturers

high quality Centrifuge Screw Press Screen filte

More Views

high quality Centrifuge Screw Press Screen filtehigh quality Centrifuge Screw Press Screen filtehigh quality Centrifuge Screw Press Screen filte

high quality Centrifuge Screw Press Screen filte

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Screw Press Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the high quality Centrifuge Screw Press Screen filte

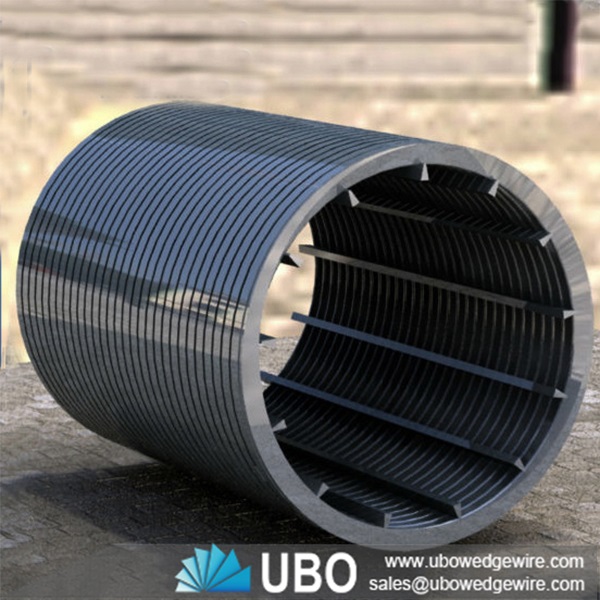

   Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

Application for high quality Centrifuge Screw Press Screen filte:

The wedge wire screen or strainer is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, also used in the petroleum industry as fittings for the petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features for high quality Centrifuge Screw Press Screen filte:

Original differential rotation screen design:
The external rotating cylindrical screen means that a fresh filtration surface is constantly presented in the thickening zone, realizing high filtration performance and allowing a high degree of thickening over a short distance. Further, the external rotating cylindrical screen means a uniform and tightly consolidated cake layer is formed within the press dewatering zone and that the cake has a lower water content comparing to a fixed external cylinder type screw press.
High separation wedge wire screen:
Maintaining a high aperture ratio and high degree of strength, the wedge wire screen can separate sludge quickly and maintain a fast filtration speed. In addition, the wedge wire screen does not clog easily and can be efficiently washed and cleaned using small quantities of water.
Water content control system:
The screw press equipped with a constant feed pressure control system which maintains the solid matter load at a constant figure. This allows a consistent recovery rate of suspended solids in the effluent and a consistent water content in the dewatered cake.

Technology for high quality Centrifuge Screw Press Screen filte:

Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.


 high quality Centrifuge Screw Press Screen filter

The specifications of the high quality Centrifuge Screw Press Screen filte:

 high quality Centrifuge Screw Press Screen filter



Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05

The Packaging and Transportation of the high quality Centrifuge Screw Press Screen filte:

 high quality Centrifuge Screw Press Screen filter
