factory v shaped wedge wire slot drum screen filter
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge wire screen cylinders |
Application: | food processing, waste water filtration, pulp and paper as well as mineral processing applications |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

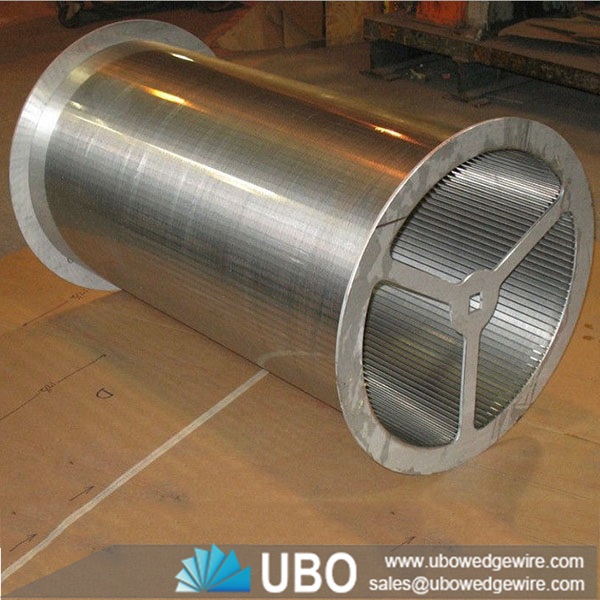

Details of factory v shaped wedge wire slot drum screen filter
Rotating trommel drums are commonly used to separate large amounts of solids from liquids,again the aperture of the screen will determine the size of the particles allowed to flow through the drum,rotating trommel drums work by getting slurry pumped into one end of the drum,as the drum rotates the smaller particles fall through the larger particles make their way to the end of th the drum as the drums are usually set up on a slight angle to help the material flow.
Application for factory v shaped wedge wire slot drum screen filter:
Trommel drum screen can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.
Features for factory v shaped wedge wire slot drum screen filter:
1.Drum screen mesh is not easy to jam.
2.Smooth operation, low noise.
3.Simple structure, convenient maintenance.
4.Sieve tube can be closed, airtight dust easily.
5.The whole machine has high reliability, one-time investment is less.
6.Adopts special mesh, high screening efficiency, long service life.
productive process for factory v shaped wedge wire slot drum screen filter:
SS 304 wedge wire Rotary drum screen
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required
Specifications of factory v shaped wedge wire slot drum screen filter:
Model
|
Mixed Juice Capacity (t/hr)
|
Drum Diameter (mm)
|
Drum Length (mm)
|
Drive (KW)
|
Feed (inlet) Size
|
Discharge (outlet)Size
|
Approx. Mass (kg)
|
WT610
|
40
|
600
|
1000
|
1.5
|
DN100
|
DN150
|
535
|
WT615
|
73
|
600
|
1500
|
1.5
|
DN100
|
DN150
|
650
|
WT1015
|
99
|
1000
|
1500
|
2.5
|
DN150
|
DN200
|
1050
|
WT1018
|
132
|
1000
|
1800
|
2.5
|
DN150
|
DN200
|
1170
|
WT1518
|
165
|
1500
|
1800
|
4.0
|
DN200
|
DN250
|
1775
|
WT1521
|
214
|
1500
|
2100
|
4.0
|
DN250
|
DN300
|
1940
|
WT1824
|
264
|
1500
|
1400
|
5.5
|
DN250
|
DN300
|
2130
|
