cylinder screen filtering elements used as Rotary drum Screens

More Views

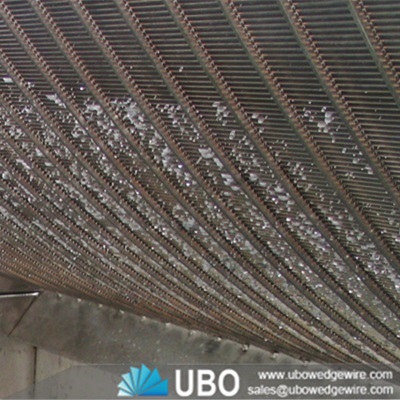

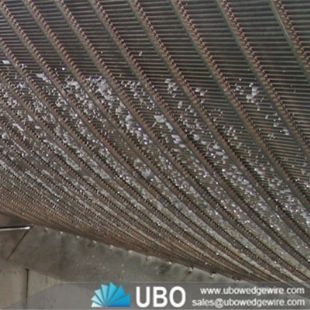

cylinder screen filtering elements used as Rotary drum Screenscylinder screen filtering elements used as Rotary drum Screenscylinder screen filtering elements used as Rotary drum Screens

cylinder screen filtering elements used as Rotary drum Screens

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Rotary drum Screens
Application:Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the cylinder screen filtering elements used as Rotary drum Screens

    Our V-shaped wire water well screen, welded at each intersection point with the V-shaped around the wire and V-shaped ribs(or circular ribs).With the firm structure, high porosity, accurate slot size, especially suitable for the well fine sand and powder sand strata.The filter has the high proportion of filter area, maximum up to 60%.V-wire screen pipe is easy to reverse wash, long service life, safe and reliable, and low comprehensive cost.

Application for cylinder screen filtering elements used as Rotary drum Screens:

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Features for cylinder screen filtering elements used as Rotary drum Screens:

1. The wedge wire water screen adopts the T shaped slot which has self-clean function. It is easy to back wash, and won't be blocked.
2. Due to its excellent resistance to acid and alkali, it has a long service life.
3. The optimal hole design and all-welded structure ensure the high strength.
4. Designed with the minimum slot width of 0.1mm, the screen is suitable for many sand-prevention applications.
5. It not only has excellent sand prevention effect, but also offers a large flow area.

Advantages for cylinder screen filtering elements used as Rotary drum Screens:

1. This type screen can be successfully applied for gravel packing and sand prevention. It enables the oil well to offer large output. And this product is not limited to the length of well section, bottom hole temperature or pressure.
2. The utilization of trapezoid wrapping wire contributes to the formation of V-shaped openings between the seams. This design pattern makes the water to be filtered smoothly, thus improving the efficiency.
3. The wrapping wire is connected to all the supporting wires by welding. It can be used for a long time. In addition, both dense and uniform seams will be formed after this trapezoid wrapping wire has been wrapped onto the circumferentially arranged supporting wires. Those seams offer a large flow area while ensuring the excellent anti-blocking performance. Also, they will effectively help avoid sediment accumulation. Consequently, high production efficiency of the water well can be significantly improved, and the lifespan can be prolonged as well.

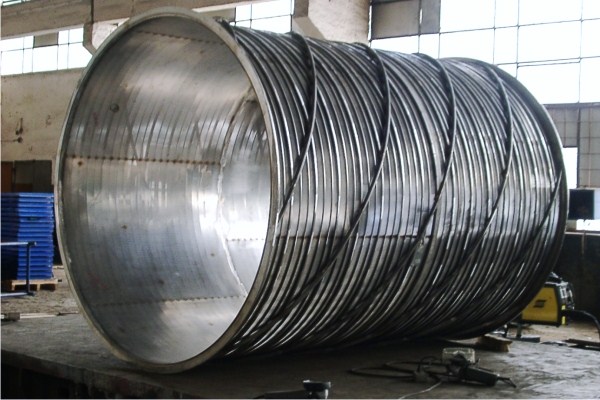

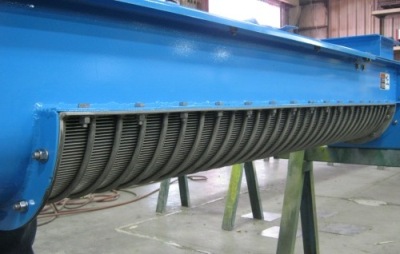

cylinder screen filtering elements used as Rotary drum Screens

cylinder screen filtering elements used as Rotary drum Screens

The specifications of the cylinder screen filtering elements used as Rotary drum Screens:

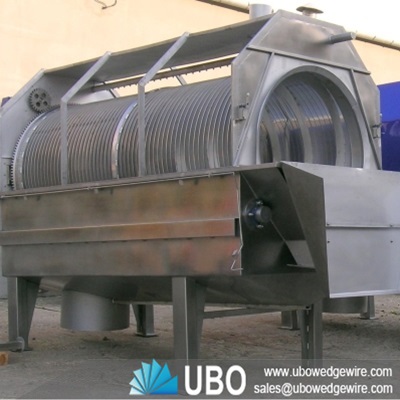

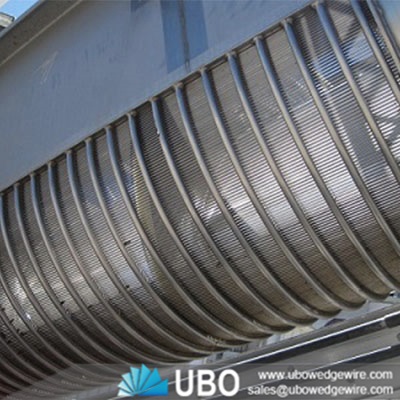

cylinder screen filtering elements used as Rotary drum Screens



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the cylinder screen filtering elements used as Rotary drum Screens:

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
