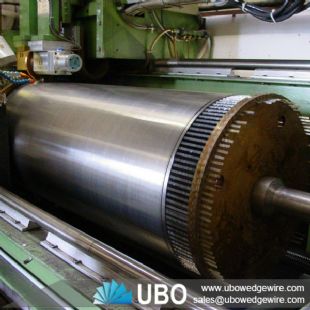

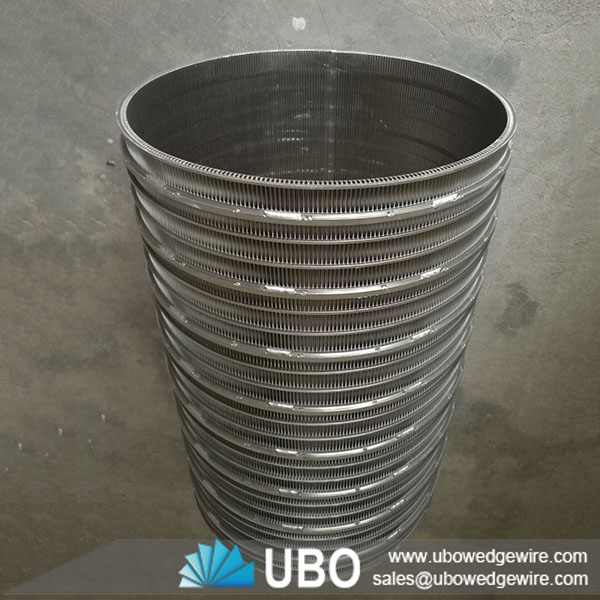

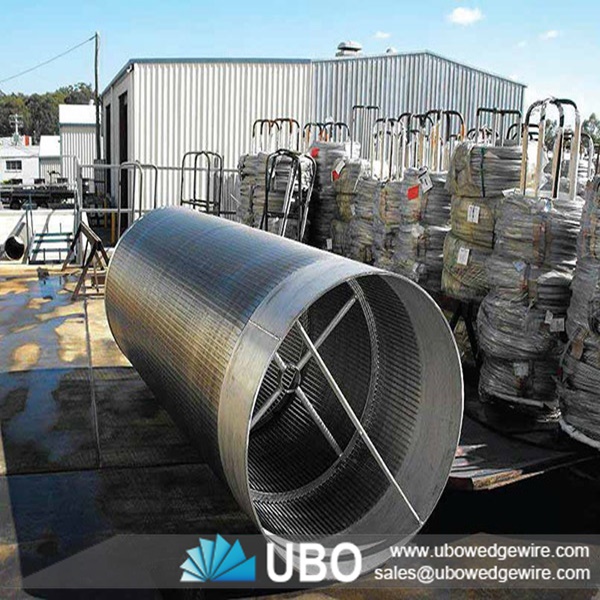

Welded wire wedge screen mesh drum cylinder for water filtration system

More Views

Welded wire wedge screen mesh drum cylinder for water filtration systemWelded wire wedge screen mesh drum cylinder for water filtration systemWelded wire wedge screen mesh drum cylinder for water filtration system

Welded wire wedge screen mesh drum cylinder for water filtration system

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire drum screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Welded wire wedge screen mesh drum cylinder for water filtration system

Welded wire wedge screen mesh drum cylinders are designed to self clean, with wedge wire tubes supporting and reinforcing the structure. Our Welded wire wedge screen mesh drum cylinders are produced to work uninterruptedly. This maintains higher efficiency and productivity whilst at the same time minimising energy consumption. Making the benefits of installing Rotary Drums Screens for your waste water screening needs from Gap Technology a definite must.

Application of Welded wire wedge screen mesh drum cylinder for water filtration system

a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)
b) Fluid, gas and oil transport
c) Pressure and heat transmission
d) Construction and ornament
e) Boiler heat exchangers

Advantages of Welded wire wedge screen mesh drum cylinder for water filtration system

1.Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2.Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3.Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4.Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)
5.Long live: Welded at each intersection creating a strong and durable screen.
6.Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7.Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

Welded wire wedge screen mesh drum cylinder for water filtration system

Welded wire wedge screen mesh drum cylinder for water filtration system

Welded wire wedge screen mesh drum cylinder for water filtration system

The specifications of the Welded wire wedge screen mesh drum cylinder for water filtration system:

Welded wire wedge screen mesh drum cylinder for water filtration system

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Welded wire wedge screen mesh drum cylinder for water filtration system:

Welded wire wedge screen mesh drum cylinder for water filtration system
