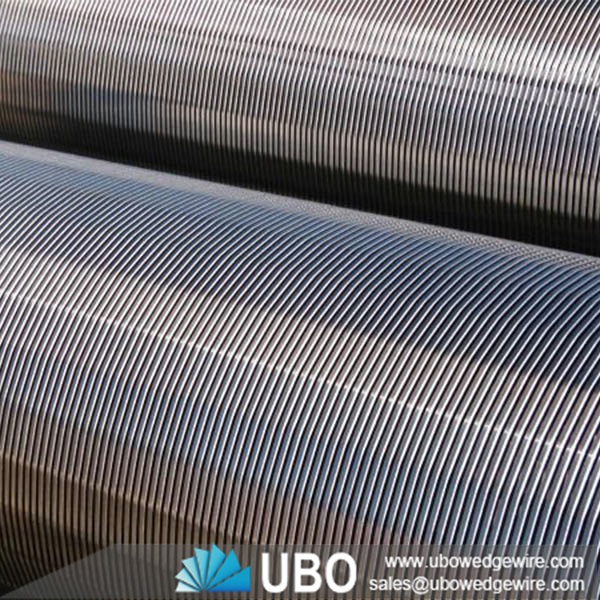

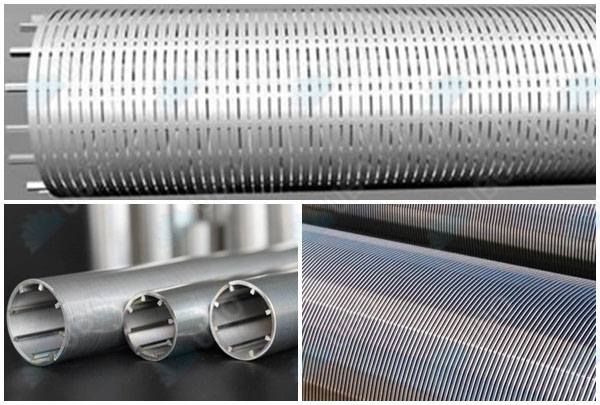

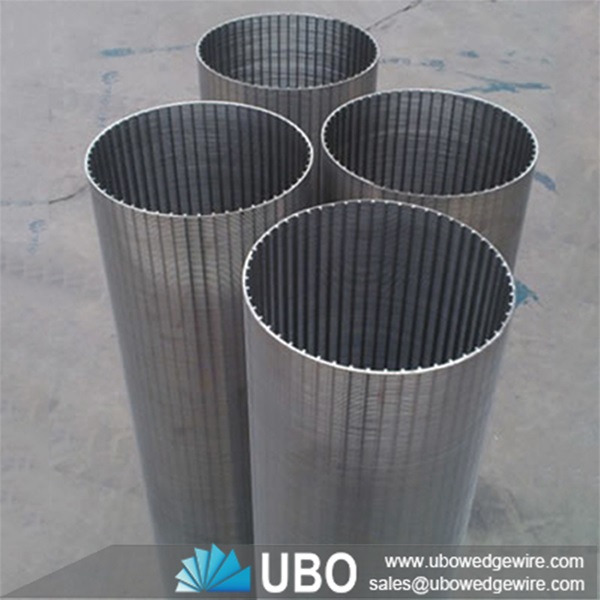

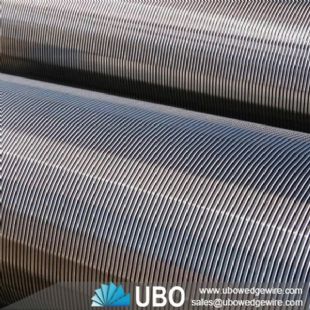

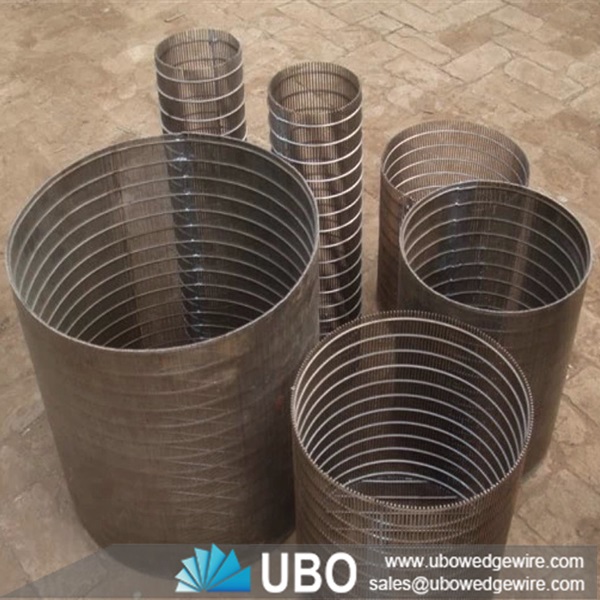

Supply stainless steel wedge wire screen panel for industry
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge wire screen cylinders |
Application: | the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Supply stainless steel wedge wire screen panel for industry
The screw press is a simple, slow moving mechanical device. Dewatering is continuous and is accomplished by gravity drainage at the inlet end of the screw and then by reducing the volume as the material being dewatered is conveyed from the inlet to the discharge end of the screw press.
Application for Supply stainless steel wedge wire screen panel for industry:
Screw press screens are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment..
Screw presses are used in a wide variety of dewatering applications, often in the same applications as belt presses, centrifuges, and filter presses.
Advantage for Supply stainless steel wedge wire screen panel for industry:
1.High strength through resistance to twisting, compressive, and tensile forces
2.A smooth bore that does not impede the passage of probes, tools, etc.
3.The special structure of the slot makes it difficult for particles to get stuck in the slot, thus bettering its discharge capacity.
4.The special bridge slot of screens helps improving their mechanic strength.
5.Application of Anticorrosive coasting will prolong the span life of wells.
6. Slots and the diameter of bridge slot screens can be custom made to satisfy your needs.
7.Convenient to operate owing to various connecting methods between screens
Specifications of Supply stainless steel wedge wire screen panel for industry:
Screen Area
(m2)
|
Sieve hole size (mm)
|
Seam Size (mm)
|
Screen Hole (T/D)
|
Screen Slot (T/D)
|
Inlet pulp consistency (%)
|
Motor Power (Kw)
|
0.3
|
Φ1.6~Φ3.5
|
0.1~0.55
|
50~80
|
30~50
|
1~4
|
22~55
|
0.6
|
Φ1.6~Φ3.5
|
0.1~0.55
|
90~160
|
60~100
|
1~4
|
30~75
|
0.9
|
Φ1.6~Φ3.5
|
0.1~0.55
|
135~250
|
90~150
|
1~4
|
37~90
|
1.2
|
Φ1.6~Φ3.5
|
0.1~0.55
|
180~320
|
120~190
|
1~4
|
45~110
|
1.5
|
Φ1.6~Φ3.5
|
0.1~0.55
|
200~380
|
140~230
|
1~4
|
55~132
|
2
|
Φ1.6~Φ3.5
|
0.1~0.55
|
260~500
|
220~300
|
1~4
|
75~160
|
3
|
Φ1.6~Φ3.5
|
0.1~0.55
|
400~700
|
300~450
|
1~4
|
90~220
|
4
|
Φ1.6~Φ3.5
|
0.1~0.55
|
500~1000
|
350~730
|
1~4
|
132~280
|
