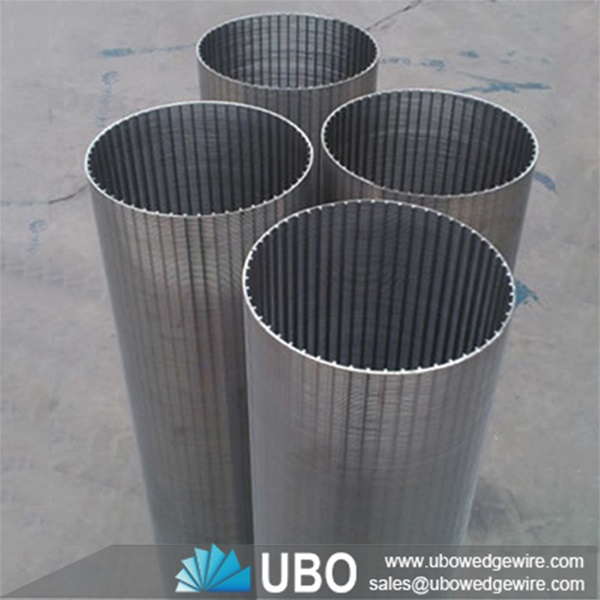

Stainless steel v shap wedge wire screen cylinder

More Views

Stainless steel v shap wedge wire screen cylinderStainless steel v shap wedge wire screen cylinderStainless steel v shap wedge wire screen cylinder

Stainless steel v shap wedge wire screen cylinder

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel v shap wedge wire screen cylinder

Stainless steel v shap wedge wire screen cylinder is a kind of filter used in the metal mesh structure elements. Widely applied in many industry in the screening and filtration dehydration, desliming, etc. Mine shaiwang mainly divided into: stainless steel welding type mine screen, welded seam, the sieve plate, basket, welding type vibration sieve cylinder, high strength, arc sieve net products.
Because of the high screen itself the strength, stiffness and bearing capacity can be made into various shapes, the filter device, currently in use in the coal industry.

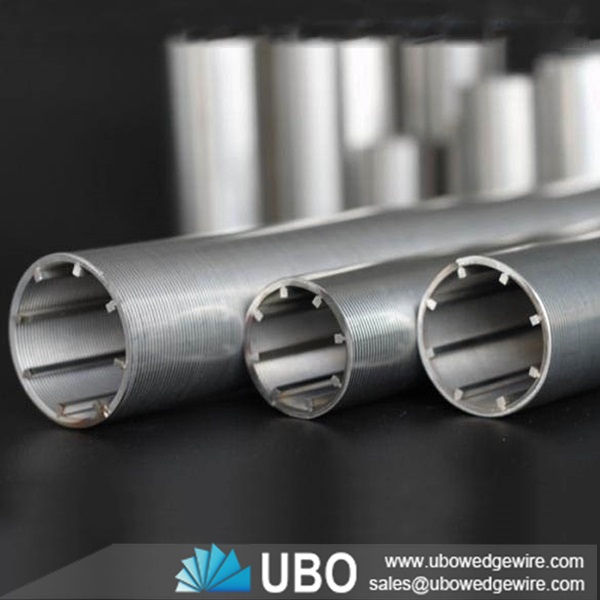

Stainless steel v shap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> cylinder

Feature of Stainless steel v shap wedge wire screen cylinder

Stainless steel v shap wedge wire screen cylinder is my company for the coal industry in recent years, the development of a new product, its characteristic is leakage, wear resistance, and corrosion. Acid and alkali resistance, high temperature resistant, tension and wear resistance.

Application of Stainless steel v shap wedge wire screen cylinder

water wells, mining & Mineral Processing, municipal water supply, refining & petrochemical, water treatment, architecture and construction, etc.

Advantage of Stainless steel v shap wedge wire screen cylinder

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop
5. Long live: Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

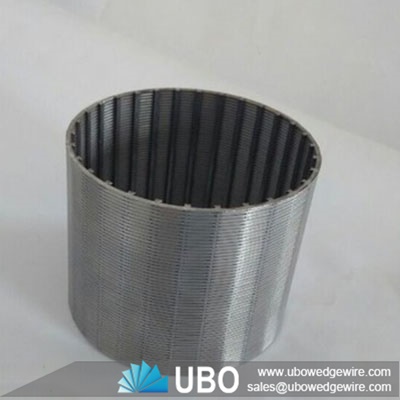

Stainless steel v shap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> cylinder

The specifications of the Stainless steel v shap wedge wire screen cylinder:



Stainless steel v shap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> cylinder

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

stainless steel (304,316 etc.) or carbon steel

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
