Stainless steel 304L Inclined Rotary Drum Screen factory

More Views

Stainless steel 304L Inclined Rotary Drum Screen factoryStainless steel 304L Inclined Rotary Drum Screen factoryStainless steel 304L Inclined Rotary Drum Screen factory

Stainless steel 304L Inclined Rotary Drum Screen factory

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel
Properties:Rotary Drum Screen
Application:wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel 304L Inclined Rotary Drum Screen factory

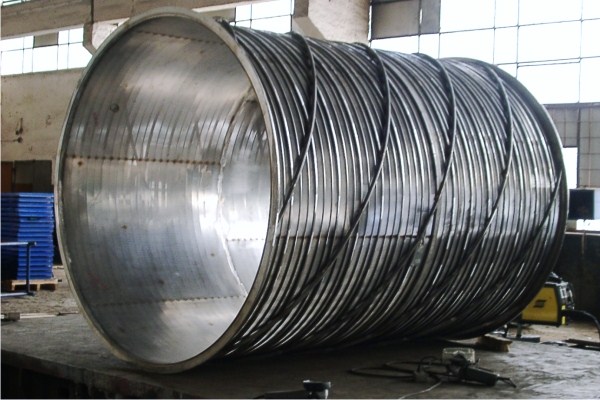

    Material feeds into the drum, is lifted up by the rotation as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

Application for Stainless steel 304L Inclined Rotary Drum Screen factory:

Our products are widely used for wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar, foodstuff, noise-sliencer, environmental protection, agricultural machine, chemical industry and pharmacy industry.

Features for Stainless steel 304L Inclined Rotary Drum Screen factory:

The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spirals, jigs etc.

Advantages for Stainless steel 304L Inclined Rotary Drum Screen factory:

1 Economical and efficient solution for screening;
2 Heavy duty trommel drum with lifters at the front to facilitate material break up;
3 Screen replaceable for different mesh sizes;
4 Multilayer screens;
5 Easily change screen plates;
6 High efficiency and big capacity;
7 Unique screen design, result in higher capacities, longer screen life and no material clogging;
8 Heavy duty feed hopper;
9 Discharge chute;
10 Gear drive mechanism.

Stainless steel 304L Inclined Rotary Drum Screen factory

Stainless steel 304L Inclined Rotary Drum Screen factory

The specifications of the Stainless steel 304L Inclined Rotary Drum Screen factory:

Stainless steel 304L Inclined Rotary Drum Screen factory

Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~22

The Packaging and Transportation of the Stainless steel 304L Inclined Rotary Drum Screen factory:

Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
