Stainless Steel Wedge Wire Screen Tube Filter Element

More Views

Stainless Steel Wedge Wire Screen Tube Filter ElementStainless Steel Wedge Wire Screen Tube Filter ElementStainless Steel Wedge Wire Screen Tube Filter Element

Stainless Steel Wedge Wire Screen Tube Filter Element

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Wedge Wire Screen Tube Filter Element

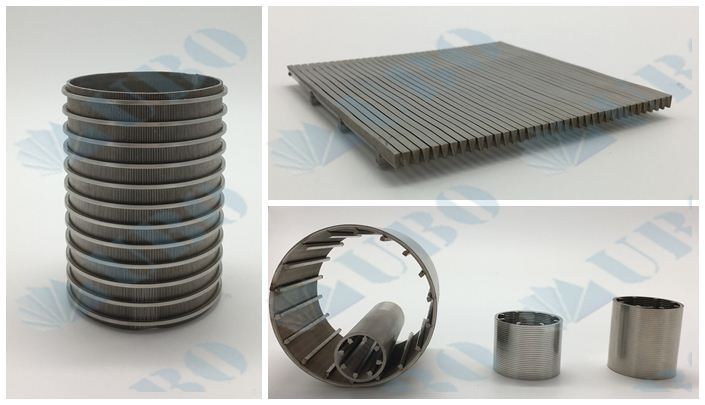

This type of Stainless Steel Wedge Wire Screen Tube Filter Element is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

The screen can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

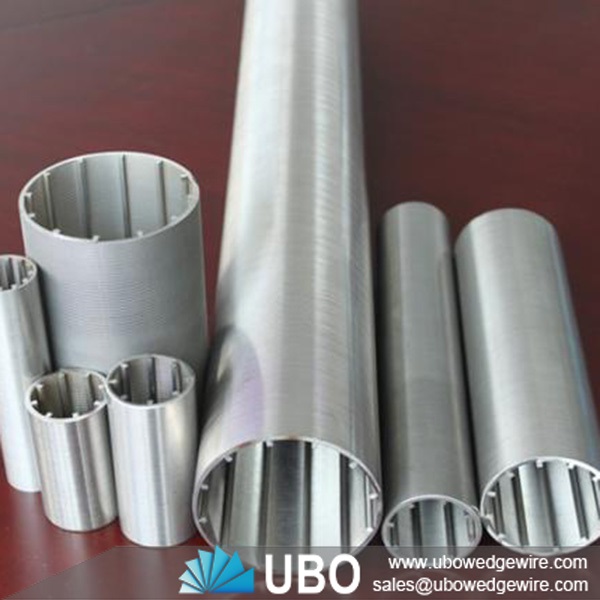

Stainless Steel Wedge Wire Screen Tube Filter Element

Applications of Stainless Steel Wedge Wire Screen Tube Filter Element

Wedge wires can be employed in almost all industrial processes which require very fine and uniformly accurate aperture, combining rapid discharge of material and high mechanical strength. Some of the specialized applications of these screens are given below -
Wedge wire screen used in industries for water, oil filtration equipments like

Filteration Equipments
Filtration Systems.
Filters.
Wedge Wire Screen.

Features of Stainless Steel Wedge Wire Screen Tube Filter Element

-- High mechanical strength can bear large pressure drop
-- Equal slots for filtering can form equally distributed filter cake
-- The wedge type slot can improve back flushing and regeration performance
-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.

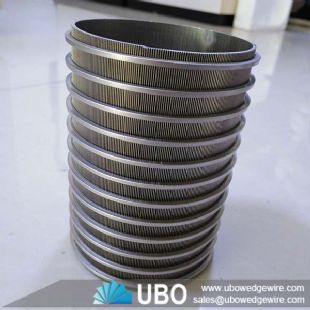

Stainless Steel Wedge Wire Screen Tube Filter Element



The specifications of the Stainless Steel Wedge Wire Screen Tube Filter Element:

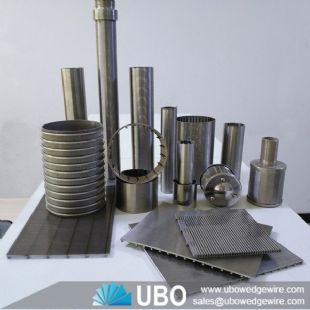

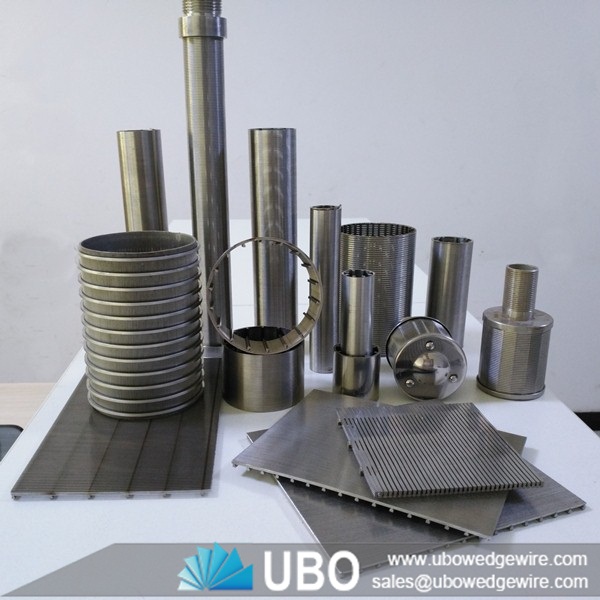

Stainless Steel Wedge Wire Screen Tube Filter Element

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Stainless Steel Wedge Wire Screen Tube Filter Element:

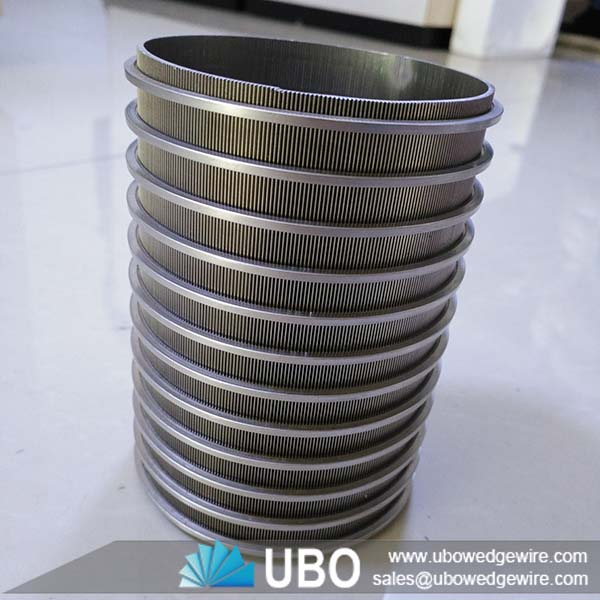

Stainless Steel Wedge Wire Screen Tube Filter Element
