Satinless Steel Inclined Rotary Drum Screen

More Views

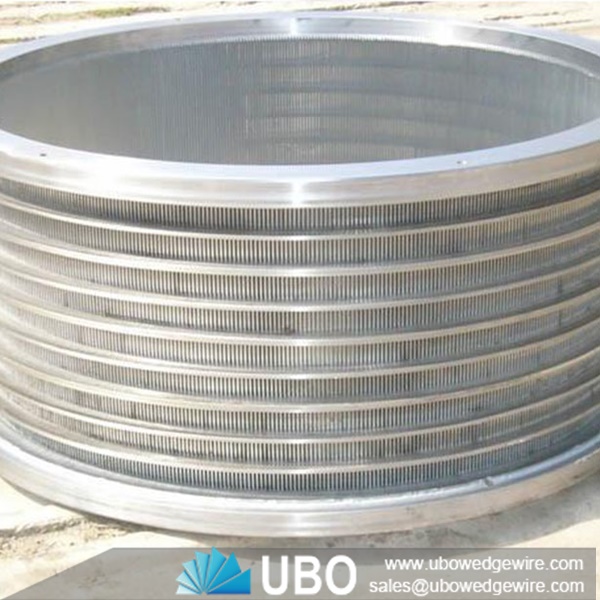

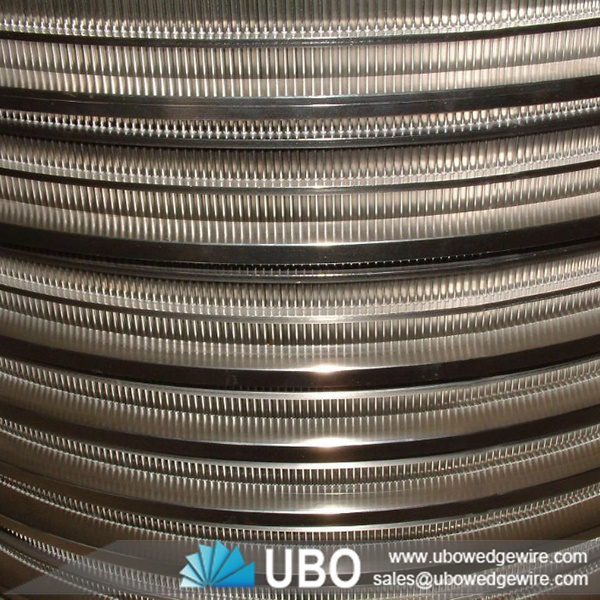

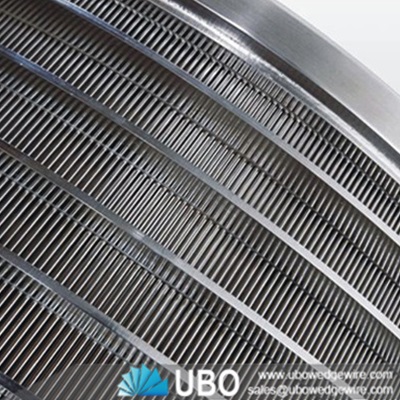

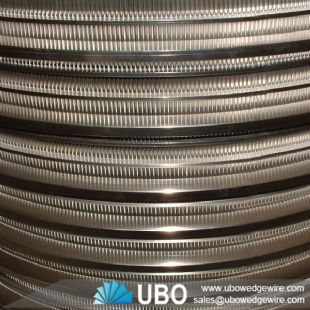

Satinless Steel Inclined Rotary Drum ScreenSatinless Steel Inclined Rotary Drum ScreenSatinless Steel Inclined Rotary Drum Screen

Satinless Steel Inclined Rotary Drum Screen

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:drum screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Satinless Steel Inclined Rotary Drum Screen

   Drum screen used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article.

Application for Satinless Steel Inclined Rotary Drum Screen:

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Advantage for Satinless Steel Inclined Rotary Drum Screen:

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2. A uniform and efficient well development due to the continuous slot opening.
3. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
4. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Working Principle for Satinless Steel Inclined Rotary Drum Screen:

GTS Series wedge wire screen drum screen utilize Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.

Satinless Steel Inclined Rotary Drum Screen

The specifications of the Satinless Steel Inclined Rotary Drum Screen:

Satinless Steel Inclined Rotary Drum Screen



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

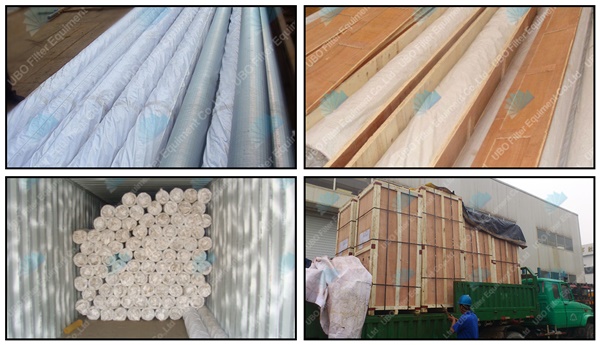

The Packaging and Transportation of the Satinless Steel Inclined Rotary Drum Screen:

Satinless Steel Inclined Rotary Drum Screen

Satinless Steel Inclined Rotary Drum Screen
