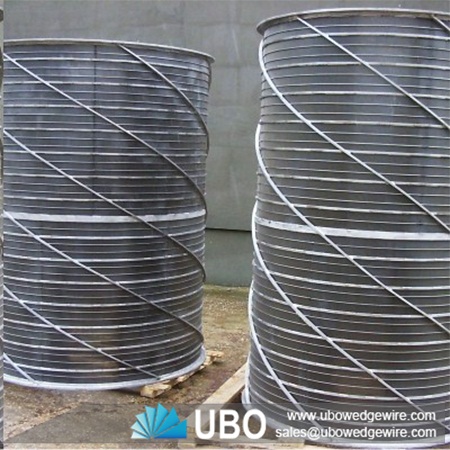

SS wedge wire screen drum basket of pressure screen

More Views

SS wedge wire screen drum basket of pressure screenSS wedge wire screen drum basket of pressure screenSS wedge wire screen drum basket of pressure screen

SS wedge wire screen drum basket of pressure screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen cylinders
Application:waste water filtration, food processing, pulp

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS wedge wire screen drum basket of pressure screen

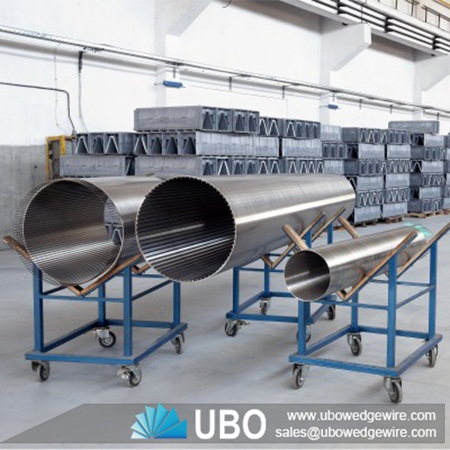

     Wedge wire screen cylinders can be produced in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunnions for a rotating effect on your materials.

Application for SS wedge wire screen drum basket of pressure screen:

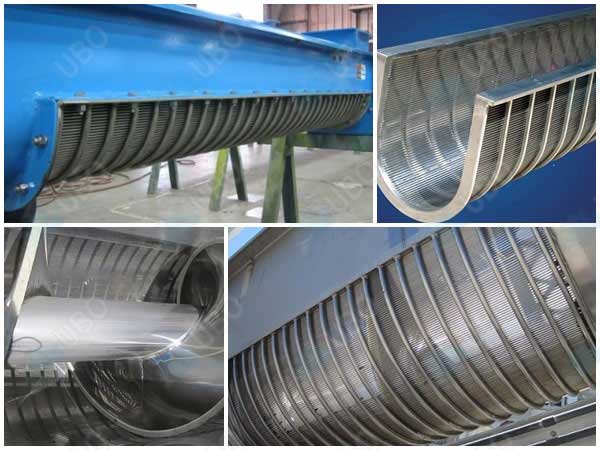

Stainless steel Wedge wire screen cylinders can be used in waste water filtration, food processing, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for SS wedge wire screen drum basket of pressure screen:

- Volume processing of 20 tons per hour
- Solids dewatering moisture content of 70-73%
- Solids dewatering recovery of 20-25%
- Pollution prevention sensor to address secondary pollution
- Easy to manage self-cleaning glass mounted device
- 6 Chemical-free, excellent for recycling livestock manure
- 7 No vibration, no noise, no odor

SS <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> drum basket of pressure screen

The specifications of the SS wedge wire screen drum basket of pressure screen:

Basepipe OD (in)
Perforations per foot
Basepipe Hole Size (in)
Open Area of Basepipe Holes (in2/ft)
Wrap Wire Size Keystone (in)
Rib Wire Size Round (in)
Maximum OD (in)
1.05
54
0.312
4.14
0.09*0.09
0.125
1.489
1.315
66
0.312
5.06
0.09*0.09
0.125
1.726
1.66
78
0.312
5.98
0.09*0.09
0.125
2.126
1.90
42
0.375
4.63
0.09*0.09
0.125
2.387
2.063
42
0.375
4.63
0.09*0.09
0.125
2.55
2.375
54
0.375
5.96
0.09*0.09
0.125
2.86
2.875
66
0.375
7.28
0.09*0.09
0.125
3.362
3.25
78
0.375
8.61
0.09*0.09
0.125
3.737
3.50
78
0.375
8.61
0.09*0.09
0.125
3.987
4.00
90
0.375
9.94
0.09*0.09
0.125
4.487
4.50
102
0.375
11.26
0.09*0.09
0.125
5.001
5.00
114
0.375
12.59
0.09*0.09
0.125
5.506

The Packaging and Transportation of the SS wedge wire screen drum basket of pressure screen:

SS <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> drum basket of pressure screen
