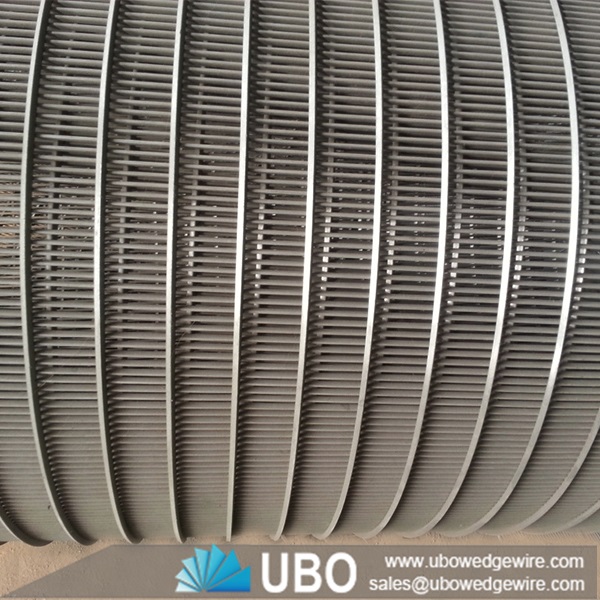

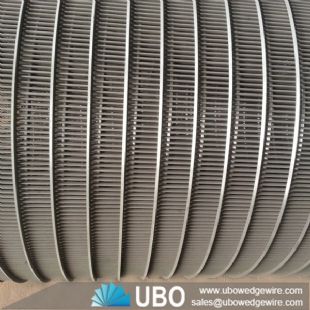

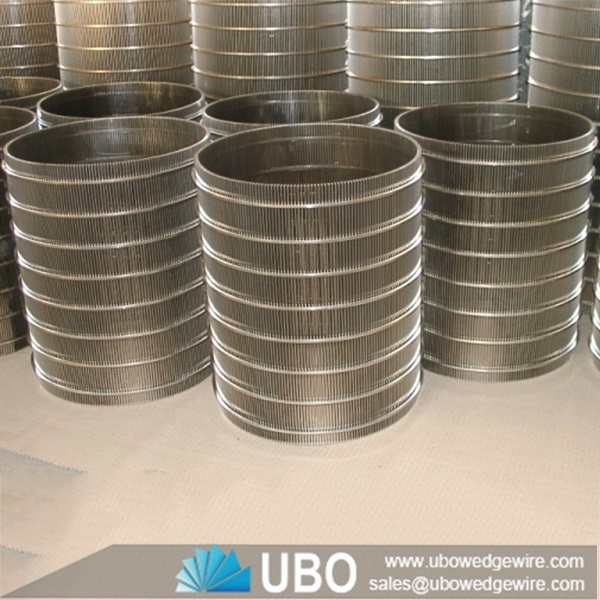

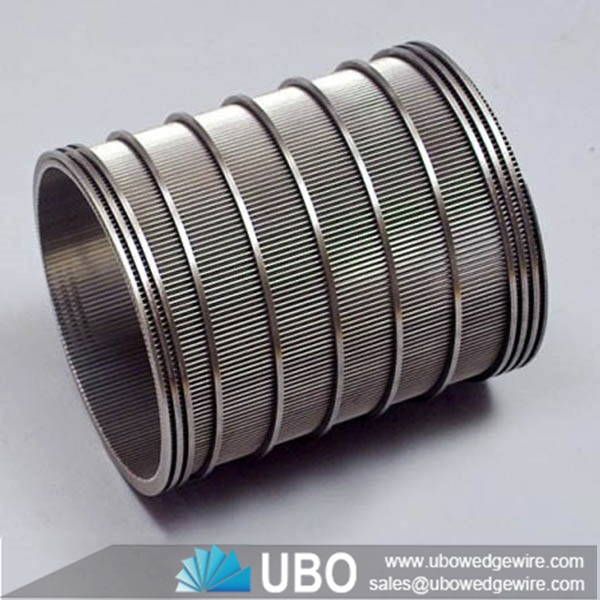

SS v wire wedge wire screen drum screen supplier

More Views

SS v wire wedge wire screen drum screen supplierSS v wire wedge wire screen drum screen supplierSS v wire wedge wire screen drum screen supplier

SS v wire wedge wire screen drum screen supplier

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS v wire wedge wire screen drum screen supplier

SS v wire wedge wire screen drum screens are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded, with an unique welding process. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. V Wire Screen offers great strength, precision, long service life and a wide range.

SS v wire <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> drum screen supplier

Application of SS v wire wedge wire screen drum screen supplier

Wedge Wire Rotary Drum Screen is always used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
Metallurgy, construction and other industries.

Featuresof SS v wire wedge wire screen drum screen supplier

1.Include single, double, and muti layer type
2.Strong processing ability
3.Easy maintenance and long life
4.High-efficient and power-saving
5.Simple and various feeding ways
6.Non-pollution and low noise

SS v wire <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> drum screen supplier

The specifications of the SS v wire wedge wire screen drum screen supplier:



SS v wire <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> drum screen supplier

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the SS v wire wedge wire screen drum screen supplier:

SS v wire <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> drum screen supplier
