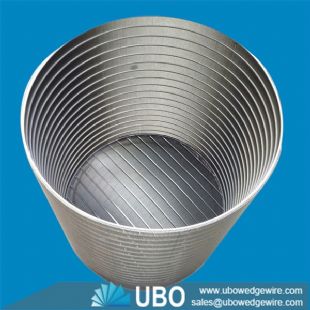

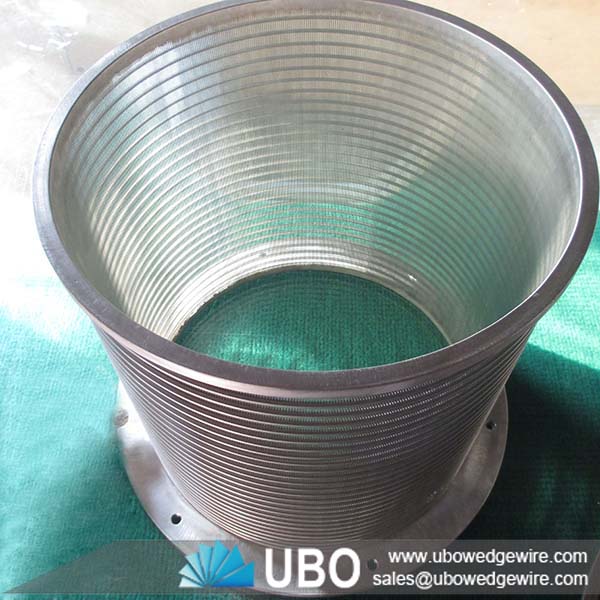

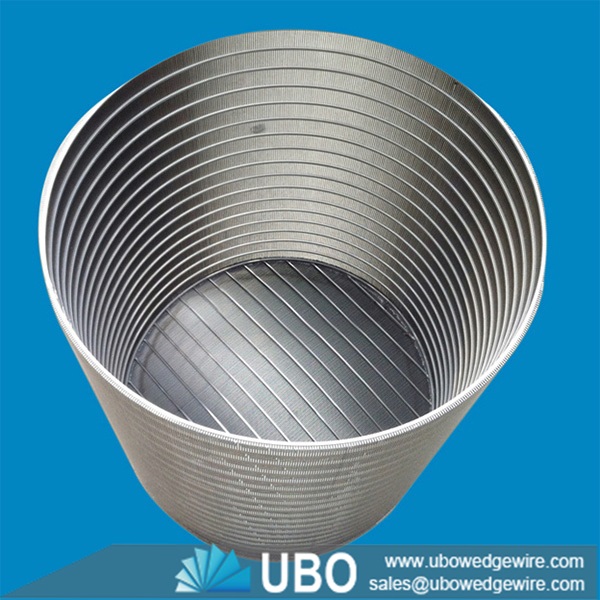

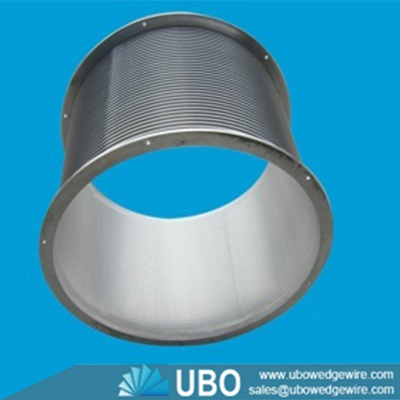

SS Wedge wire Vessel Internals for booster pump stations

More Views

SS Wedge wire Vessel Internals for booster pump stationsSS Wedge wire Vessel Internals for booster pump stationsSS Wedge wire Vessel Internals for booster pump stations

SS Wedge wire Vessel Internals for booster pump stations

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS Wedge wire Vessel Internals for booster pump stations

   Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

Application for SS Wedge wire Vessel Internals for booster pump stations:

Trommel drum screen can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for SS Wedge wire Vessel Internals for booster pump stations :

1.Drum screen mesh is not easy to jam.
2.Smooth operation, low noise.
3.Simple structure, convenient maintenance.
4.Sieve tube can be closed, airtight dust easily.
5.The whole machine has high reliability, one-time investment is less.
6.Adopts special mesh, high screening efficiency, long service life.

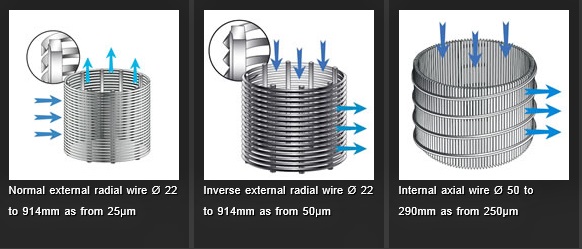

Flow direction of Stainless Steel Wire Cylindrical Strainers :

SS Wedge wire Vessel Internals for booster pump stations



SS Wedge wire Vessel Internals for booster pump stations

The specifications of the SS Wedge wire Vessel Internals for booster pump stations:

SS Wedge wire Vessel Internals for booster pump stations



Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05

The Packaging and Transportation of the SS Wedge wire Vessel Internals for booster pump stations:

SS Wedge wire Vessel Internals for booster pump stations
