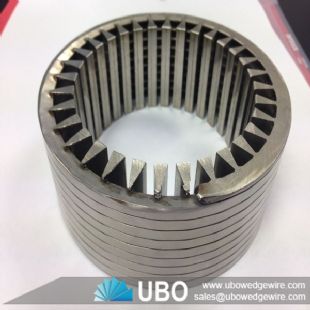

Rod Based Continuous Slot Welded Wedge Wire Screen

More Views

Rod Based Continuous Slot Welded Wedge Wire ScreenRod Based Continuous Slot Welded Wedge Wire ScreenRod Based Continuous Slot Welded Wedge Wire Screen

Rod Based Continuous Slot Welded Wedge Wire Screen

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Rod Based Continuous Slot Welded Wedge Wire Screen

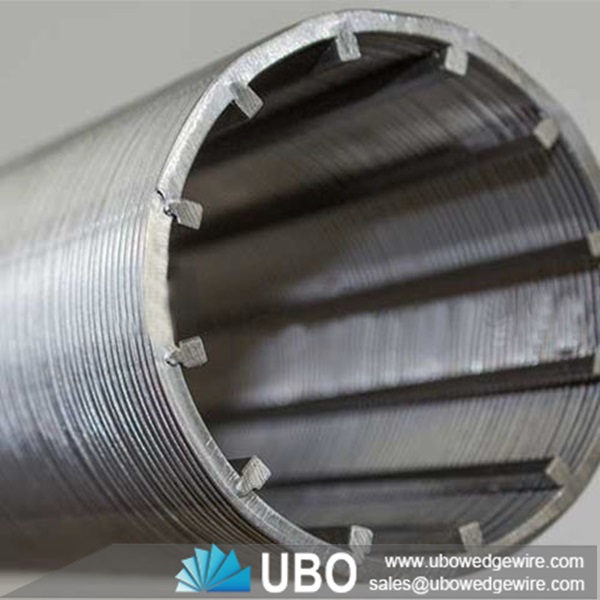

    Stainless steel wire wrap V shaped screen pipe, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

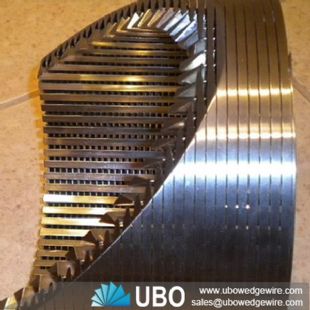

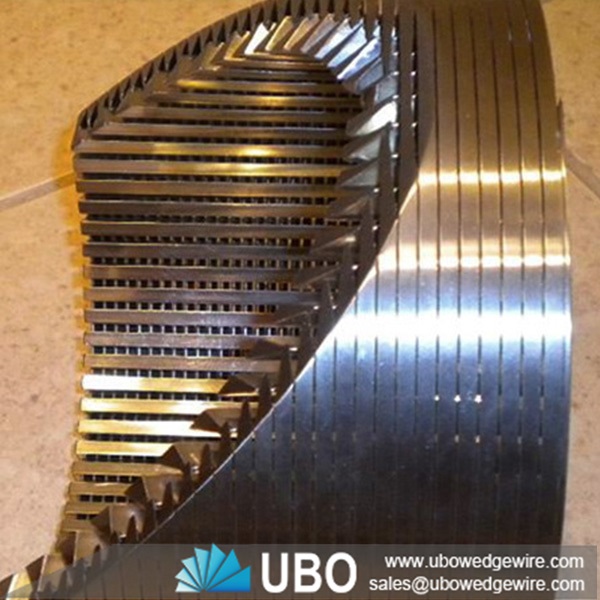

     As we all know, the wire wrap V shaped screen pipe is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be triangular wire, round wire and trapezoid wire.

Rod Based Continuous Slot Welded Wedge Wire Screen

Application for Rod Based Continuous Slot Welded Wedge Wire Screen:

Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.

Characteristics for Rod Based Continuous Slot Welded Wedge Wire Screen:

1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Features for Rod Based Continuous Slot Welded Wedge Wire Screen:

1.Special continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Rod Based Continuous Slot Welded Wedge Wire Screen

The specifications of the Rod Based Continuous Slot Welded Wedge Wire Screen:

Rod Based Continuous Slot Welded Wedge Wire Screen



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

The Packaging and Transportation of the Rod Based Continuous Slot Welded Wedge Wire Screen:
