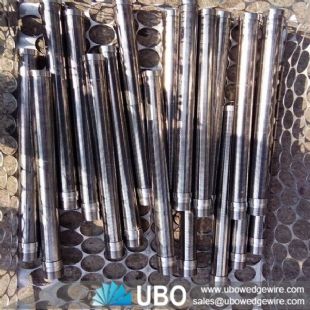

Johnson screen pipe stainless steel slot filter element

More Views

Johnson screen pipe stainless steel slot filter elementJohnson screen pipe stainless steel slot filter elementJohnson screen pipe stainless steel slot filter element

Johnson screen pipe stainless steel slot filter element

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water well,water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Johnson screen pipe stainless steel slot filter element

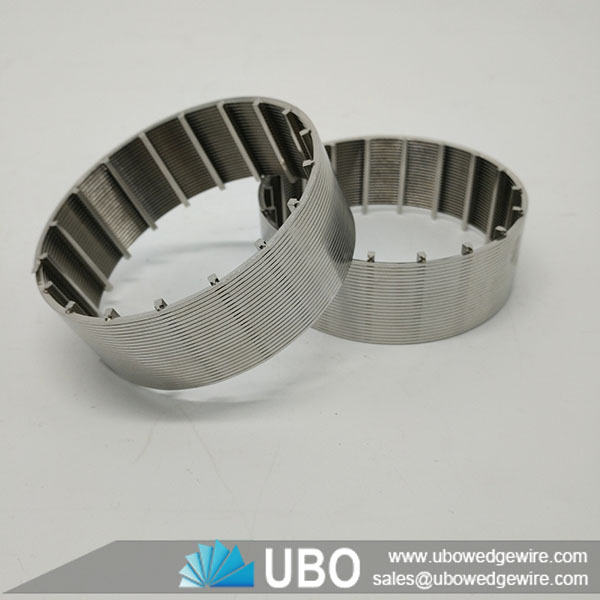

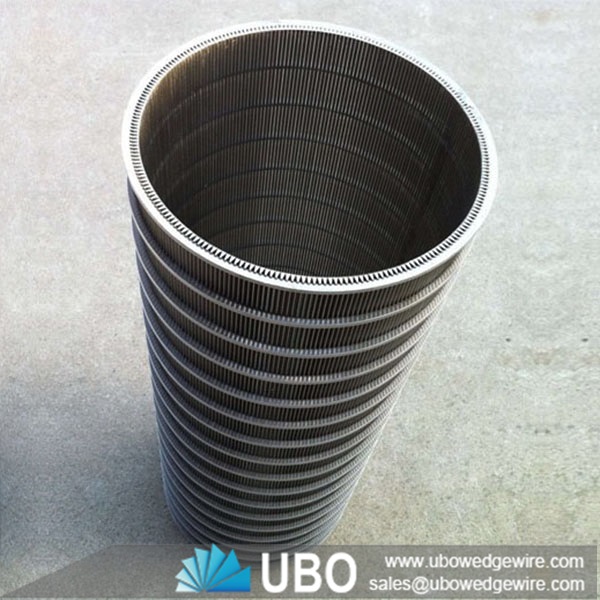

Johnson screen pipe stainless steel slot filter element is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

Johnson screen pipe stainless steel slot filter element

Johnson screen pipe stainless steel slot filter element

Advantages of Johnson screen pipe stainless steel slot filter element

*Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
*High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
* Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
*Low pressure-drop.
* Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
*High efficiency: continuous slot opening.
* Large flow rate: “v” shaped profile wire ensures a uninterrupted flow.

Application of Johnson screen pipe stainless steel slot filter element

Wedge wire water well screen cylinder strainers are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.

Johnson screen pipe stainless steel slot filter element

Johnson screen pipe stainless steel slot filter element

Johnson screen pipe stainless steel slot filter element

The specifications of the Johnson screen pipe stainless steel slot filter element:



Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

The Packaging and Transportation of the Johnson screen pipe stainless steel slot filter element:

Johnson screen pipe stainless steel slot filter element
