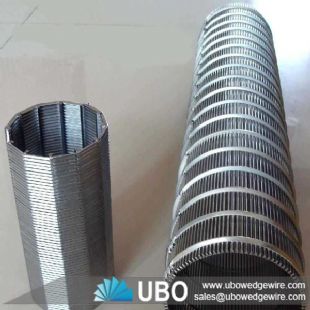

Industrial wedge wire wrapped screen

More Views

Industrial wedge wire wrapped screenIndustrial wedge wire wrapped screenIndustrial wedge wire wrapped screen

Industrial wedge wire wrapped screen

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Industrial wedge wire wrapped screen

Industrial wedge wire wrapped screen (V-shaped wire). The Industrial wedge wire wrapped screen have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

Uses of Industrial wedge wire wrapped screen

Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

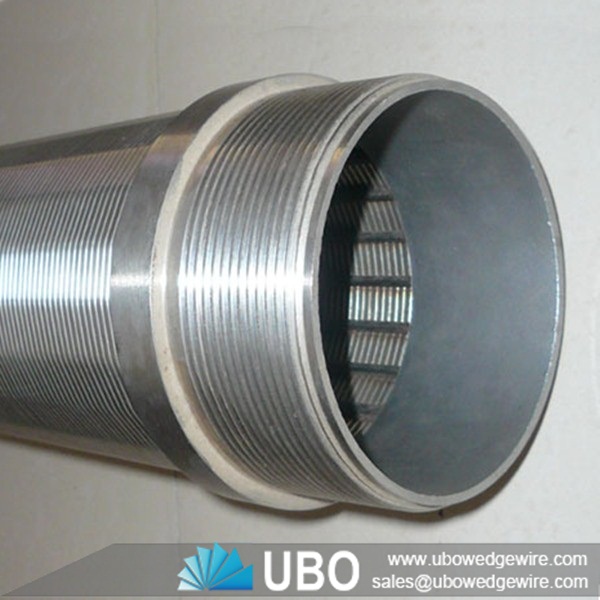

Industrial wedge wire wrapped screen

Advantage of Industrial wedge wire wrapped screen

1. Non-clogging construction: The V-shape section plane of wedge wire screens (Wedge Wire type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. Large Filtering Area: The consecutive slot of wedge wire screens (Wedge Wire type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,
which can increase the water yield and prolong service time of the well.
3.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Wedge Wire types screens) more robust and longer life.
4.Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Wedge Wire type screens) have more excellent pressure-resistant performance.
5.Specifications and end connections of wedge wire screens(Wedge Wire screens) can me fabricated according to customers’ requirements.

Application of Industrial wedge wire wrapped screen

It is widely used in petrochemical, refining, water supply system, dirt water treament, hydraulic system, coal mining, and architecture industry.

With stainelss steel material and special welded structure, it can be easy cleaning by mechanical scraping or back flushing, that's why it is so popular among these industries.

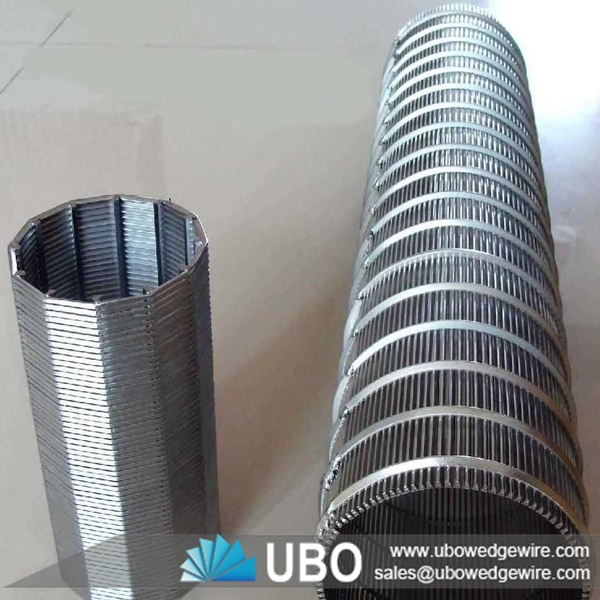

Industrial wedge wire wrapped screen

Specifications of Industrial wedge wire wrapped screen:

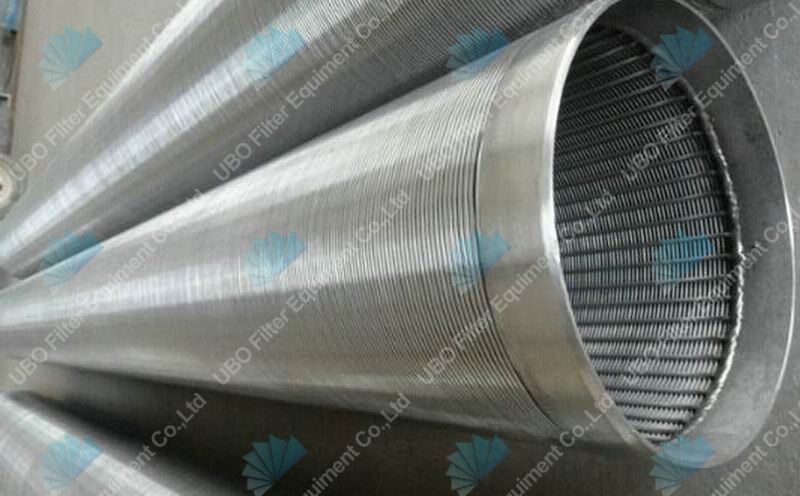

Industrial wedge wire wrapped screen

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

Packaging and Transportation of Industrial wedge wire wrapped screen:

transportation
