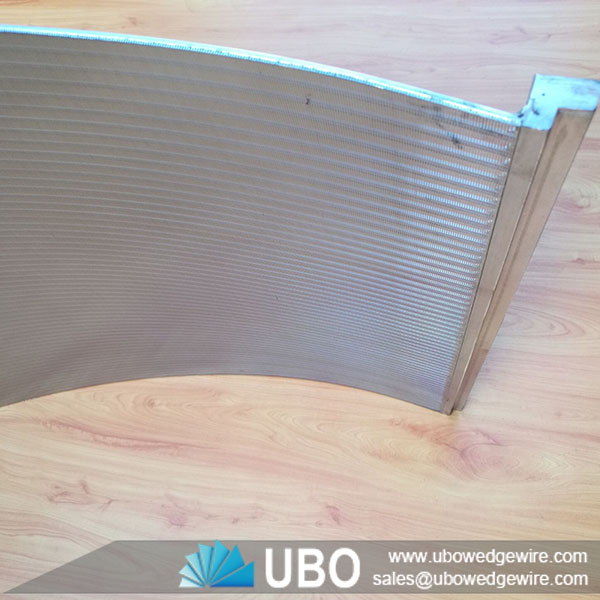

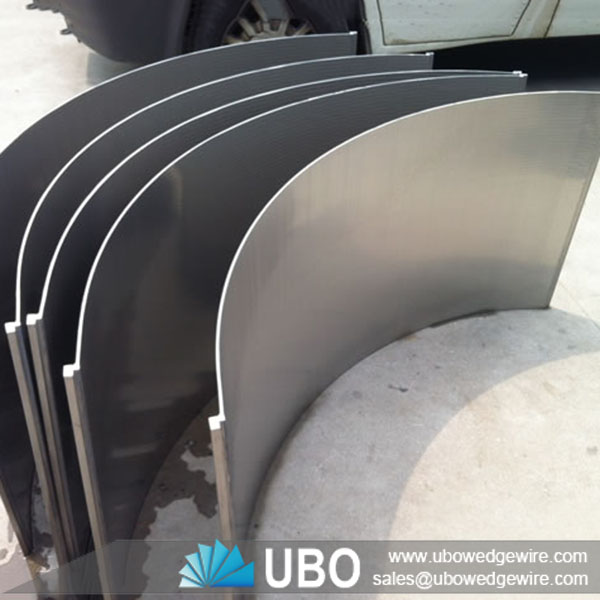

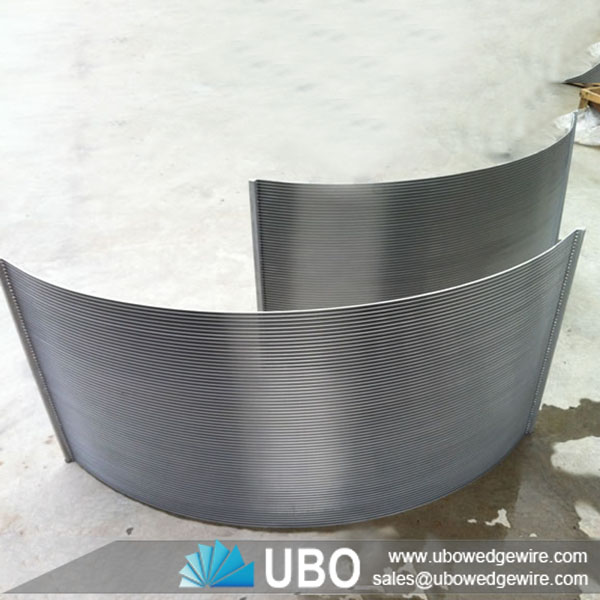

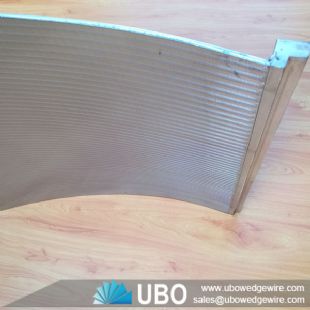

stainless steel wedge wire sieve bend screen panel for sugar processsing

More Views

stainless steel wedge wire sieve bend screen panel for sugar processsingstainless steel wedge wire sieve bend screen panel for sugar processsingstainless steel wedge wire sieve bend screen panel for sugar processsing

stainless steel wedge wire sieve bend screen panel for sugar processsing

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the stainless steel wedge wire sieve bend screen panel for sugar processsing

Stainless steel wedge wire sieve bend screen panel can be fabricated in a range of both flat panels and tubes. Wedge-wire and support profiles are resistance welded with accurate slot dimensions. The screens can be mechanically and electropolished, and given additional surface hardening treatments.
Further support structures and fastening brackets, can be added. Tubes can have various end piece connections and additional internal strengthening.
Thin wire tubes can be made for the support of other filter media, such as filter cloths.

stainless steel wedge wire sieve bend screen panel for sugar processsing

Used of stainless steel wedge wire sieve bend screen panel for sugar processsing

The uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.

Advantages of stainless steel wedge wire sieve bend screen panel for sugar processsing

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

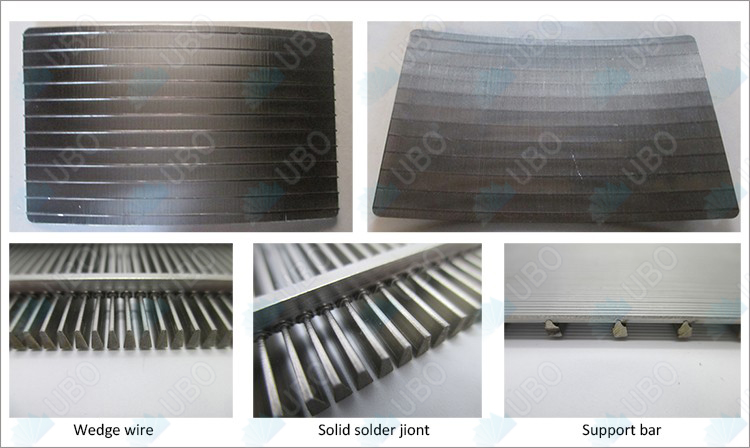

stainless steel wedge wire sieve bend screen panel for sugar processsing

The specifications of the stainless steel wedge wire sieve bend screen panel for sugar processsing:

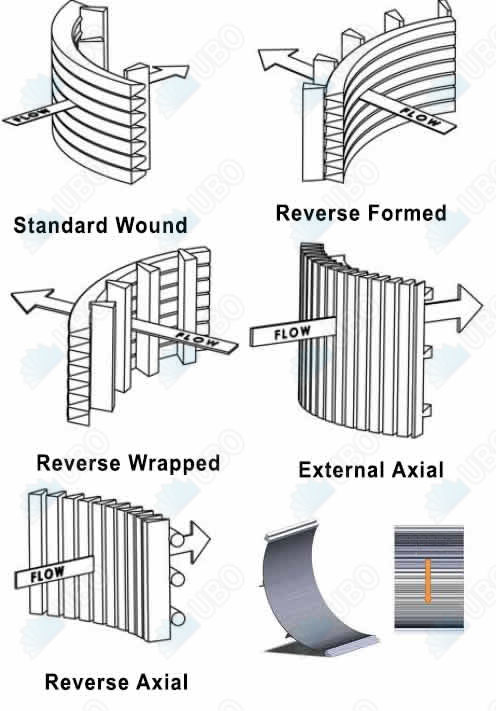

stainless steel wedge wire sieve bend screen panel for sugar processsing

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the stainless steel wedge wire sieve bend screen panel for sugar processsing:

stainless steel wedge wire sieve bend screen panel for sugar processsing
