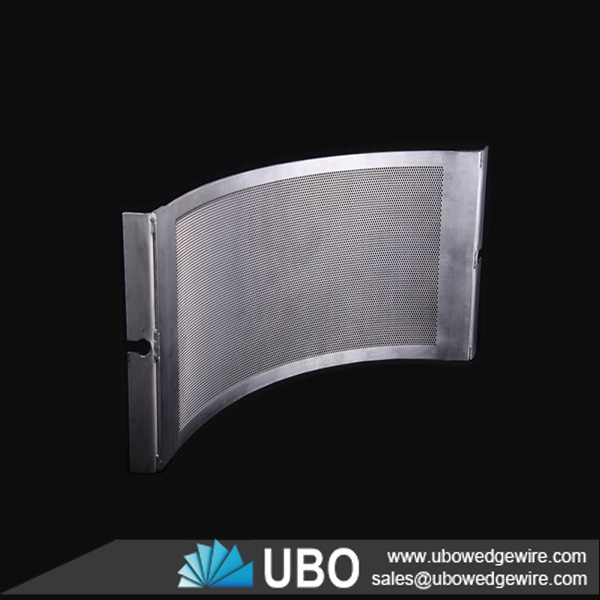

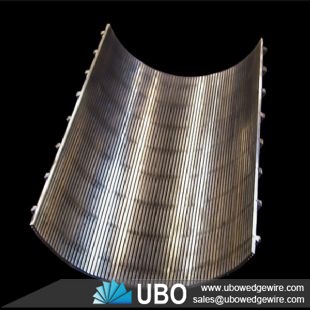

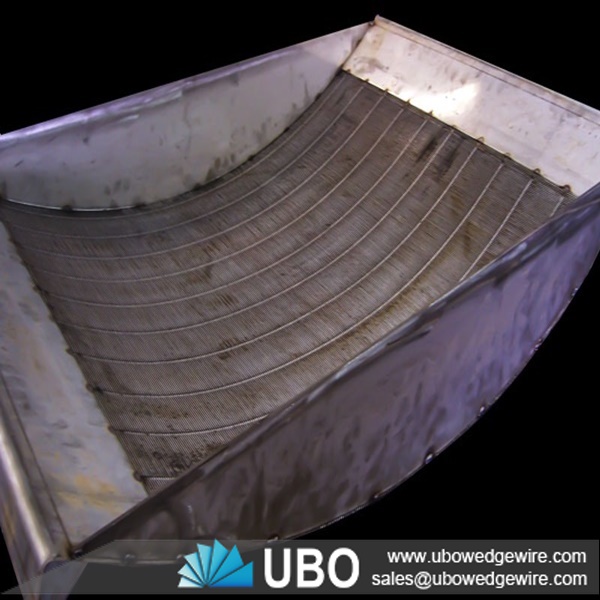

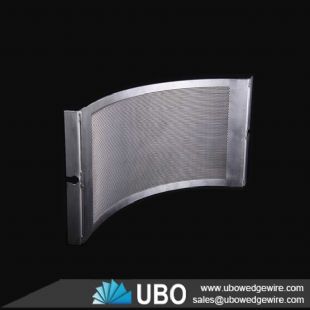

stainless steel wedge wire curve screen panel

More Views

stainless steel wedge wire curve screen panelstainless steel wedge wire curve screen panelstainless steel wedge wire curve screen panel

stainless steel wedge wire curve screen panel

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire curve screen panel

UBO design advantages of our sieve bends, some processes will tend to cause blinding or plugging problems. These can be quickly solved with mechanical rappers or vibrators. Unlike some systems, our assemblies have the vibration directed to the frame which holds the screen rather than to the screen itself. This avoids stresses on the screen which can lead to premature failure through breaking. The strong, rigid nature of our all-welded screen panels lets you apply vibration vigorously and and effectively without risk of damage.

Our sieve bend assemblies are manufactured as standard units with an included angle of 45 O and a radius of 1018 mm for the 250 mm wide unit or a 2032 mm radius for 500, 750 or 1000 mm wide screens. Slot sizes range from 25 mm to super-fine 25 micron slot for the 120 0 DSM screens. Special order screens can be made wider to increase capacity; longer to increase effectiveness.

stainless steel wedge wire curve screen panel

Uses of stainless steel wedge wire curve screen panel

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Feature of stainless steel wedge wire curve screen panel

Fully welded construction, high strength and light weight.
Due to the V-shaped cross section of welding wires, it is clogging-resistant, and effective in dewatering.
It can be machined into different shapes to be flat, cylindrical (inward curling, outward curling), conic and so on.
It can be made from some special materials, such as titanium, hastelloy, monel, etc.

stainless steel wedge wire curve screen panel

Specifications of stainless steel wedge wire curve screen panel:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15

End connection

Plain beveled ends, flanged or threaded couplings

stainless steel wedge wire curve screen panel
