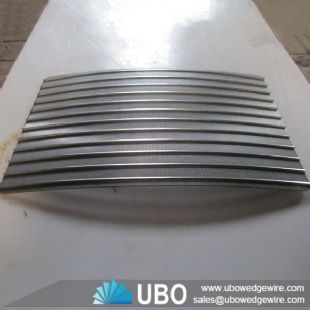

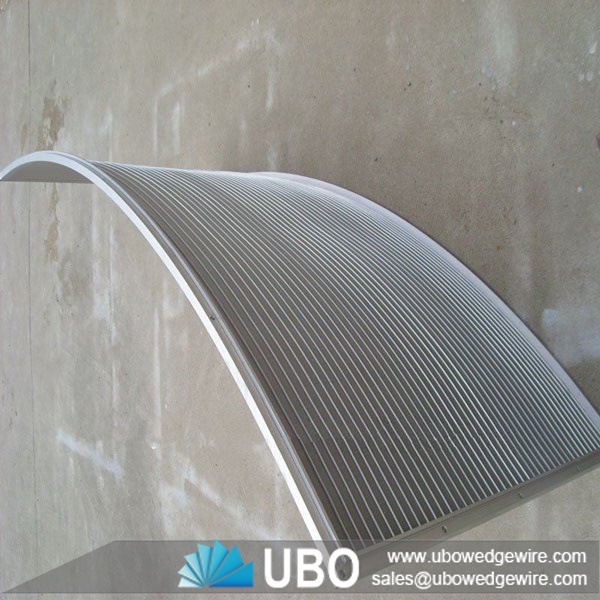

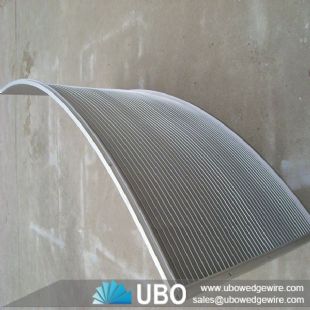

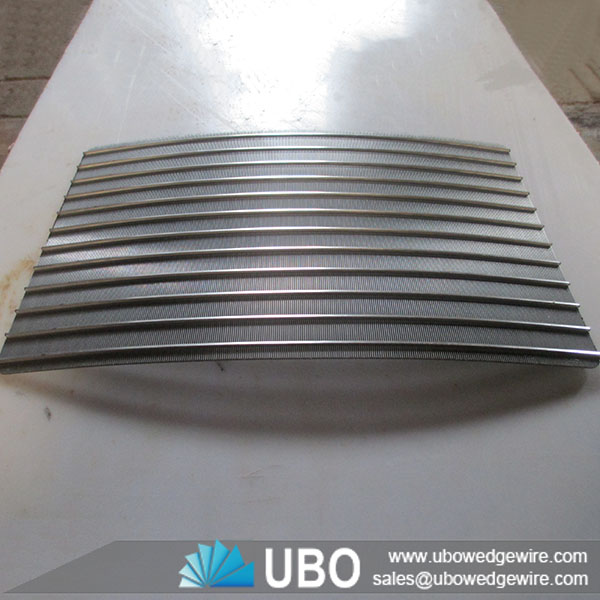

ss 304 wedge wire curved sieve bend screen filter

More Views

ss 304 wedge wire curved sieve bend screen filterss 304 wedge wire curved sieve bend screen filterss 304 wedge wire curved sieve bend screen filter

ss 304 wedge wire curved sieve bend screen filter

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the ss 304 wedge wire curved sieve bend screen filter

The ss 304 wedge wire curved sieve bend screen filter have continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening. And the products are made by continuously winding a wrap wire onto a frame of support rods. This is done on precision built, electronically controlled machinery which ensures consistently high strength, precise slot openings and product durability.

The ss 304 wedge wire curved sieve bend screen filters are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each jointpoint of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.

ss 304 wedge wire curved sieve bend screen filter

Usages of ss 304 wedge wire curved sieve bend screen filter

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Advantage of ss 304 wedge wire curved sieve bend screen filter

1. Non Plugging slots
2. V-shaped wire creating, two point particle contact preventing plugging.
3. Inwardly opening slots (in-flow) preventing sand particles from remaining lodged in screen.
4. The V-shaped wire enhances well efficiency, ensures consistent pumping and long well life.
5. Large Open Area
6. The continuous slot wedge wire offers higher open area than any other type of screens used for water well applications, such as slotted pipe, punched pipe, louver screens.
7. Wedge wires for each application are selected to maximize open area, resulting in the lowest possible cost for water extraction.

ss 304 wedge wire curved sieve bend screen filter

ss 304 wedge wire curved sieve bend screen filter

ss 304 wedge wire curved sieve bend screen filter

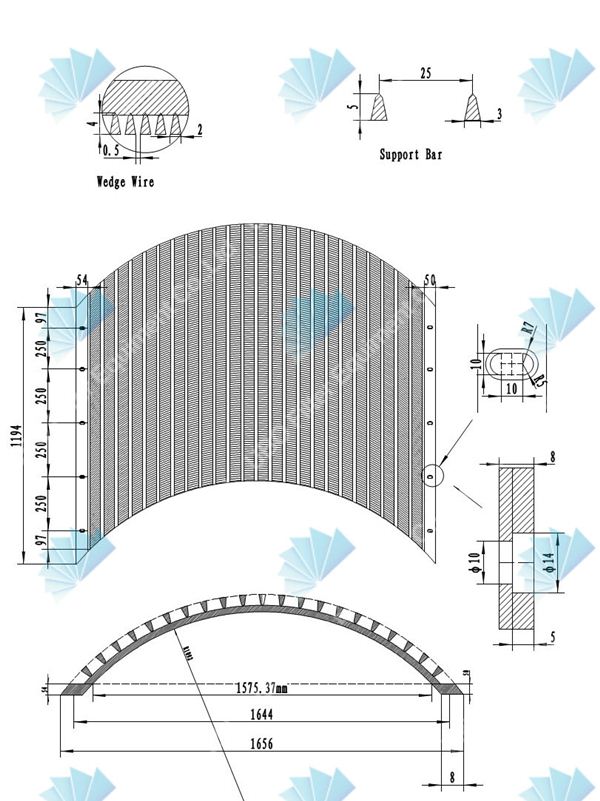

The specifications of the ss 304 wedge wire curved sieve bend screen filter:

ss 304 wedge wire curved sieve bend screen filter



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 ,316Letc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

60º  120º or according to your special requirement

The Packaging and Transportation of the ss 304 wedge wire curved sieve bend screen filter:

ss 304 wedge wire curved sieve bend screen filter
