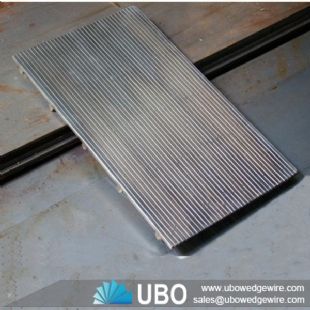

Wedge wire sieve bend screen filter
Category: | Sieve Bend Screen |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge wire sieve bend screen filter

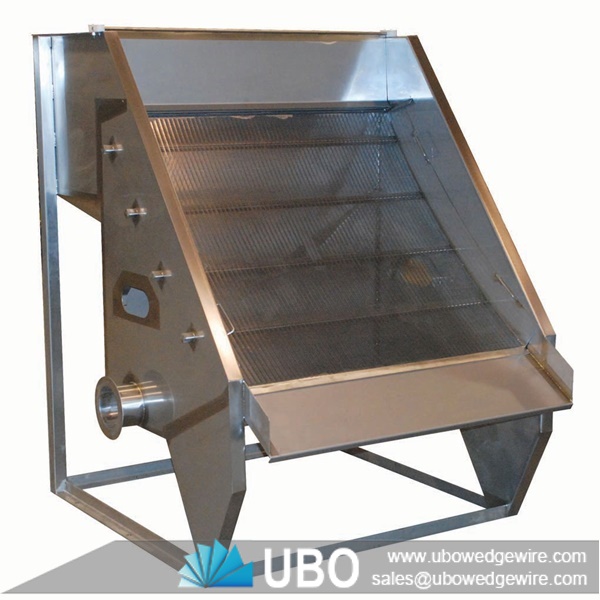

Wedge wire sieve bend screen filters are ideal for sizing and dewatering applications to remove solids from liquids, or in solid/solid separation for dry feed situations.

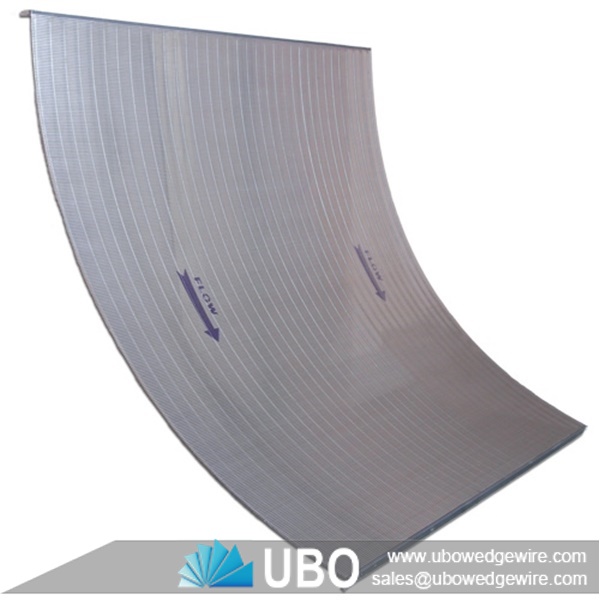

Wedge wire sieve bend screen filter can be manufactured in a variety of widths, arc lengths, apertures or wedge wires to suit the flow rate and material being separated. Although most applications require Static Sieve Bends, "Cross Flow", "With Flow" and "Vibrating" Sieve Bends can also be manufactured.
Advantages of Wedge wire sieve bend screen filter
1. Working with the water gravity, no energy consumption
2. High water treatment capacity
3. Not easy to be blocked and easy to clean
4. Using stainless steel, it has high mechanical strength and long life.
Application of Wedge wire sieve bend screen filter
1. To remove the solid substance such as suspended matter, floater and precipitate in the waste water treatment of slaughter, leather, paper, sugar, wine-making, food processing, textile, printing and dyeing, petrochemical industry.
2. To recycle useful material such as fiber in paper, alcohol, starch and food industry.
3. Pretreatment of sludge and channel cleanout.
Specifications of Wedge wire sieve bend screen filter:
Model | Effective Screen Width x Radius (mm) x Angle | Approx. Assembly Dimensions Width x Depth x Height (mm) | Approx. Mass of Assembly (kg) |
JXR600 | 600 x 1018 x 45 | 786 x 900 x 1200 | 140 |
JXR900 | 900 x 1018 x 45 | 1086 x 900 x 1200 | 180 |
JXR1200 | 1200 x 1018 x 45 | 1386 x 900 x 1200 | 225 |
JXR1500 | 1500 x 1018 x 45 | 1686 x 900 x 1200 | 265 |
JXR900 | 900 x 2036 x 45 | 1086 x 1400 x 2100 | 325 |
JXR1200 | 1200 x 2036 x 45 | 1386 x 1400 x 2100 | 395 |
JXR1500 | 1500 x 2036 x 45 | 1686 x 1400 x 2100 | 455 |
JXR1800 | 1800 x 2036 x 45 | 2040 x 1400 x 2100 | 755 |
JXR2100 | 2100 x 2036 x 45 | 2340 x 1400 x 2100 | 835 |
JXR2400 | 2400 x 2036 x 45 | 2640 x 1400 x 2100 | 920 |
JXR2700 | 2700 x 2036 x 45 | 2990 x 1400 x 2100 | 1,035 |
JXR3000 | 3000 x 2036 x 45 | 3290 x 1400 x 2100 | 1,120 |
Packaging and Transportation of Wedge wire sieve bend screen filter:
Packaging

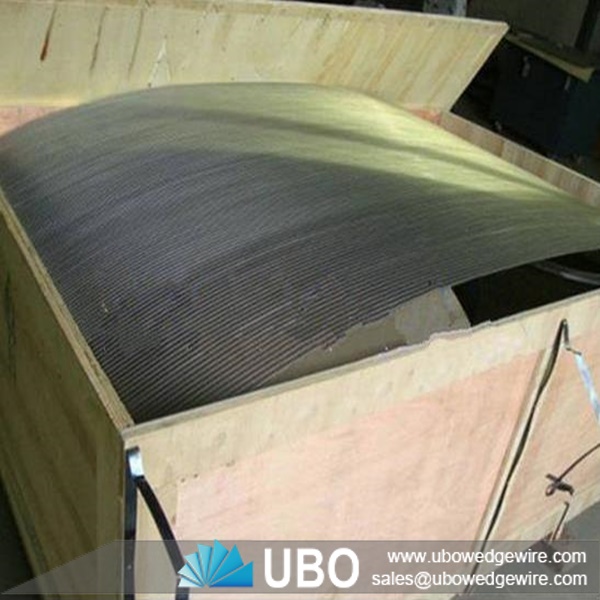

1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.
