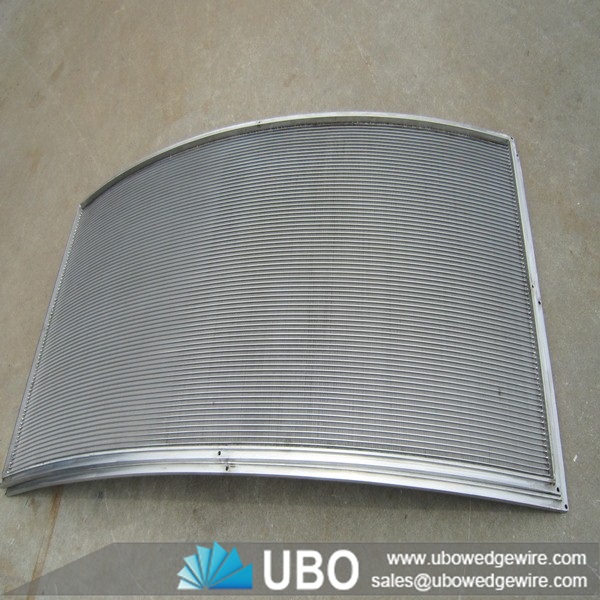

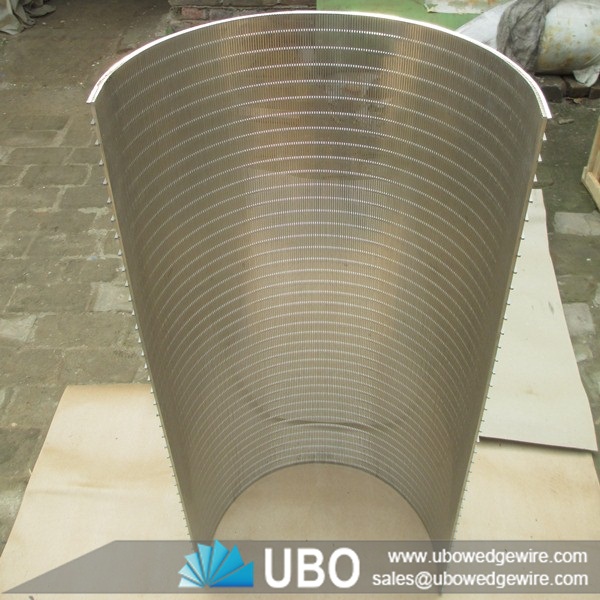

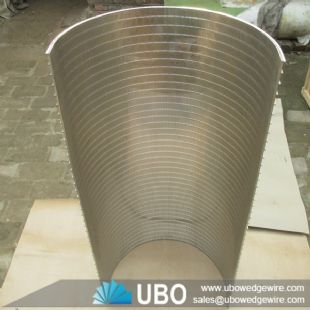

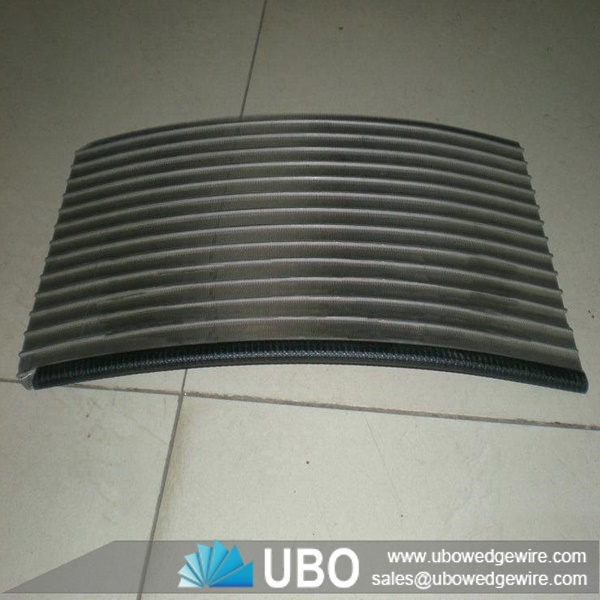

Wedge Wire Pressure Arc Screen Panel
| Category: | Sieve Bend Screen |
|---|---|
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Pressure Arc Screen Panel
Wedge wire pressure arc screen panel has a greater screeing capactity than a flat screen due to forces exerted as material flows against the curved surface.
This wedge wire pressure arc screen panel is mounted in a frame with the screen openings perpendicular to the flow.
In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.
Separeation size in considerably smaller than screen openings,usually about one-half the opening size.
Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.
Advantage of Wedge Wire Pressure Arc Screen Panel
-- Flat surface.
-- Excellent filtering performance.
-- Accurate distance between supporting profile.
-- Welded production process for solid and strong structure.
-- Good mechanical properties.
-- High strength.
-- High load capacity.
-- Corrosion and rust resistance.
-- Temperature resistance.
-- Chemical stability.
Application of Wedge Wire Pressure Arc Screen Panel
Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.
Specifications of Wedge Wire Pressure Arc Screen Panel:
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Width |
from 25mm to 1200mm. |
|
Radian |
60º 120º or according to your special requirement |
Packaging and Transportation of Wedge Wire Pressure Arc Screen Panel:
Package: in wood case
Delivery Time: 5-25 days
