lateral pipe for resin trap

More Views

lateral pipe for resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the lateral pipe for resin trap

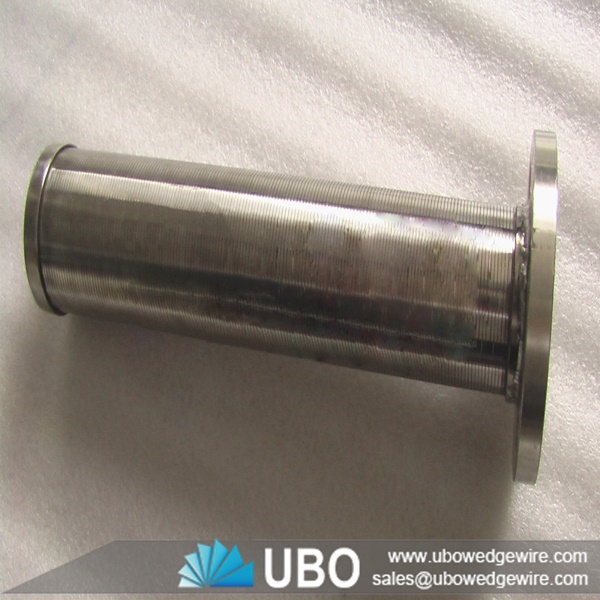

lateral pipe for resin trap is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.lateral pipe for resin trap is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Application of lateral pipe for resin trap

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features of lateral pipe for resin trap

High open area.
High filtering and screening performance.
Various ending types.
Temperature resistance.
Corrosion and rust resistance.
Non-clogging.
Easy to install and replace.
Low maintenance cost.
Durable and long service life.
Suit different application.

Advantage of lateral pipe for resin trap

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.
lateral pipe for resin trap

The specifications of the lateral pipe for resin trap:



Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2  0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150,

200

442,496,547,

600,654,705,

758,812,863,

916,970,1021,

1074,1128,1179,

1232, 1286

lateral pipe for resin trap

The Packaging and Transportation of the lateral pipe for resin trap:

transportation
