Wedge profile wire screen resin trap screen pipe for industry filtration

More Views

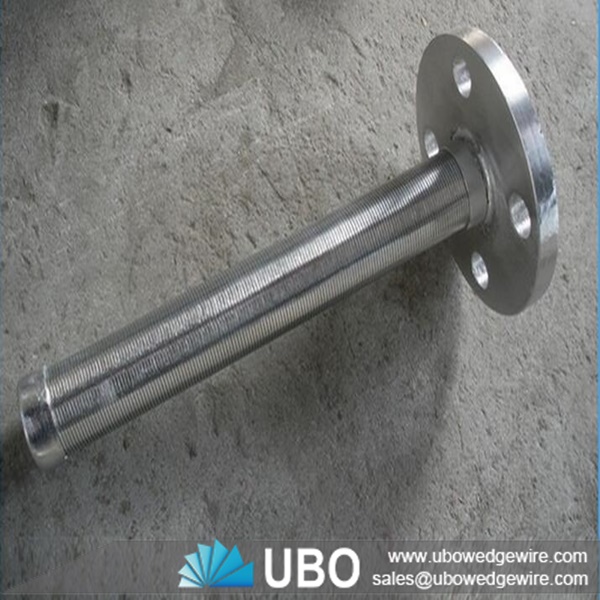

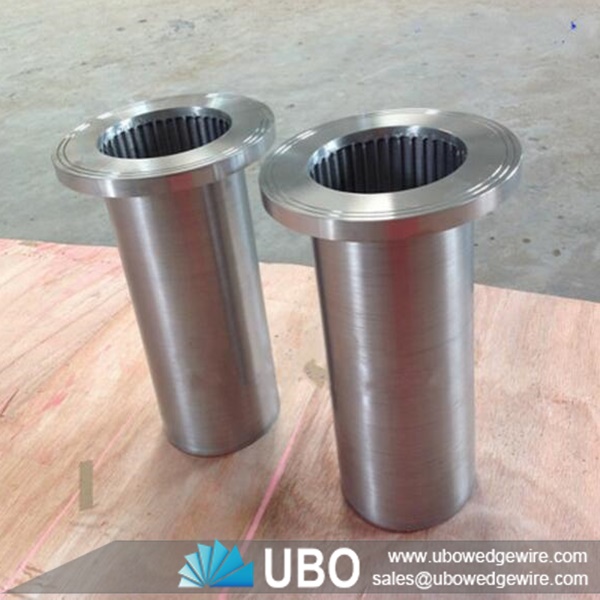

Wedge profile wire screen resin trap screen pipe for industry filtrationWedge profile wire screen resin trap screen pipe for industry filtrationWedge profile wire screen resin trap screen pipe for industry filtration

Wedge profile wire screen resin trap screen pipe for industry filtration

Category:Resin Traps
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge profile wire screen resin trap screen pipe for industry filtration

Wedge profile wire screen resin trap screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.

Wedge profile wire screen resin trap screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Wedge profile wire screen resin trap screen pipe for industry filtration

Application of Wedge profile wire screen resin trap screen pipe for industry filtration

Welded stainless steel water well screen pipes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Feature of Wedge profile wire screen resin trap screen pipe for industry filtration

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Wedge profile wire screen resin trap screen pipe for industry filtration

The specifications of the Wedge profile wire screen resin trap screen pipe for industry filtration:

Wedge profile wire screen resin trap screen pipe for industry filtration



wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

The Packaging and Transportation of the Wedge profile wire screen resin trap screen pipe for industry filtration:

Wedge profile wire screen resin trap screen pipe for industry filtration
