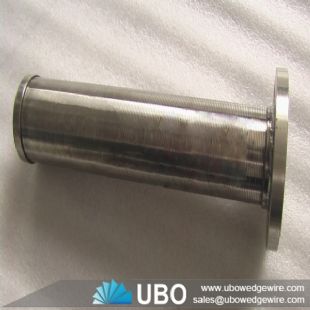

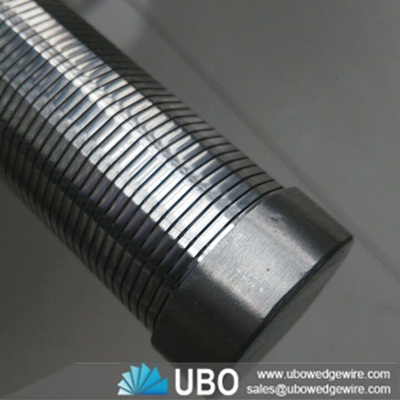

Stainless Steel flanged wedge wire collectors for water

More Views

Stainless Steel flanged wedge wire collectors for waterStainless Steel flanged wedge wire collectors for waterStainless Steel flanged wedge wire collectors for water

Stainless Steel flanged wedge wire collectors for water

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel flanged wedge wire collectors for water

    lateral pipe for resin trap is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.lateral pipe for resin trap is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Application for Stainless Steel flanged wedge wire collectors for water:

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

Advantage for Stainless Steel flanged wedge wire collectors for water:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

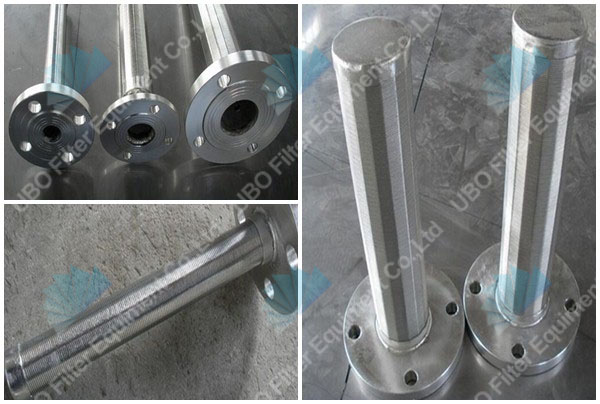

Stainless Steel flanged wedge wire collectors for water

The specifications of the Stainless Steel flanged wedge wire collectors for water:




stainless steel wedge wire screen resin trap

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

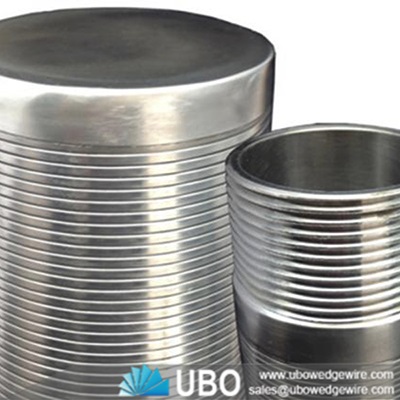

Connection:thread or flange, according to your special requirement
