wedge wire screen header lateral for Drainage System

More Views

wedge wire screen header lateral for Drainage Systemwedge wire screen header lateral for Drainage Systemwedge wire screen header lateral for Drainage System

wedge wire screen header lateral for Drainage System

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Profile screen laterals
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire screen header lateral for Drainage System

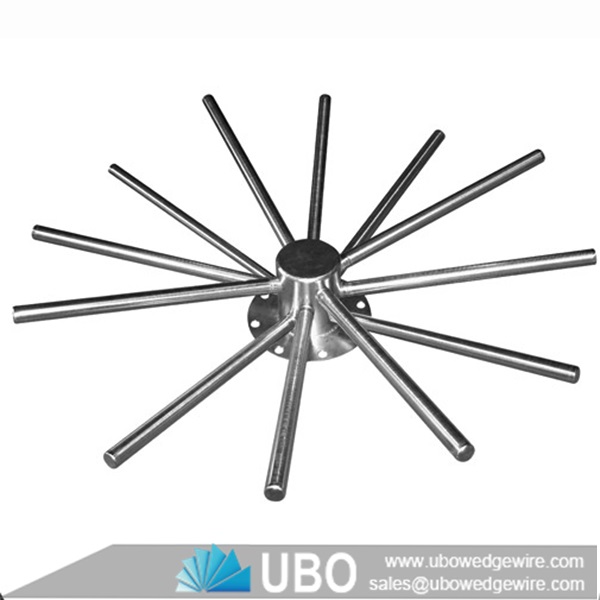

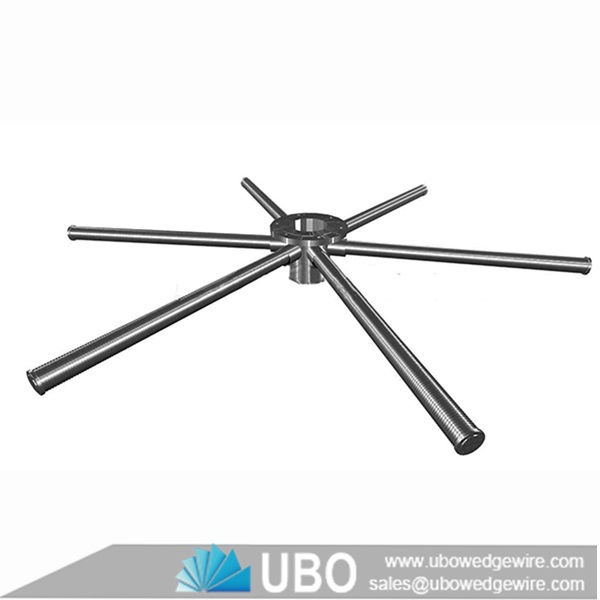

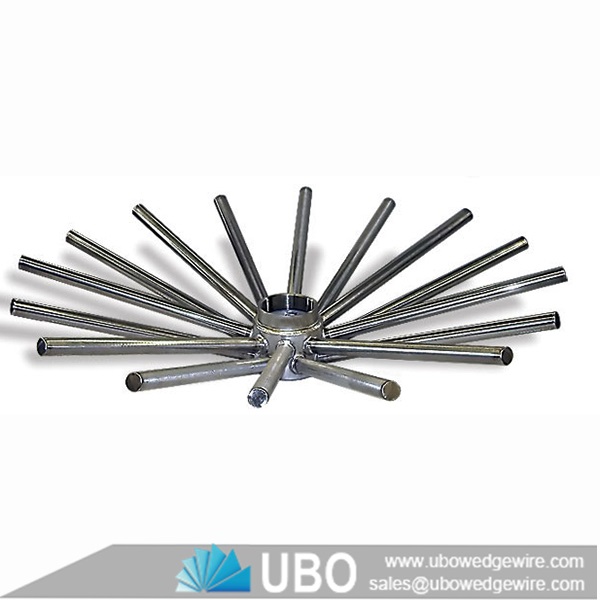

    Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications

Application for wedge wire screen header lateral for Drainage System:

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Advantages for wedge wire screen header lateral for Drainage System:

High open area
Quick filtration
Economical solution, also for refurbishing of existing lauter tuns
Accurate filter rating
Longer service life
Low maintenance costs
Possible to build-in in existing equipment(custom made)

Traditional laterals for wedge wire screen header lateral for Drainage System:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> header lateral for Drainage System

The specifications of the wedge wire screen header lateral for Drainage System:

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> header lateral for Drainage System



Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

The Packaging and Transportation of the wedge wire screen header lateral for Drainage System:

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> header lateral for Drainage System
