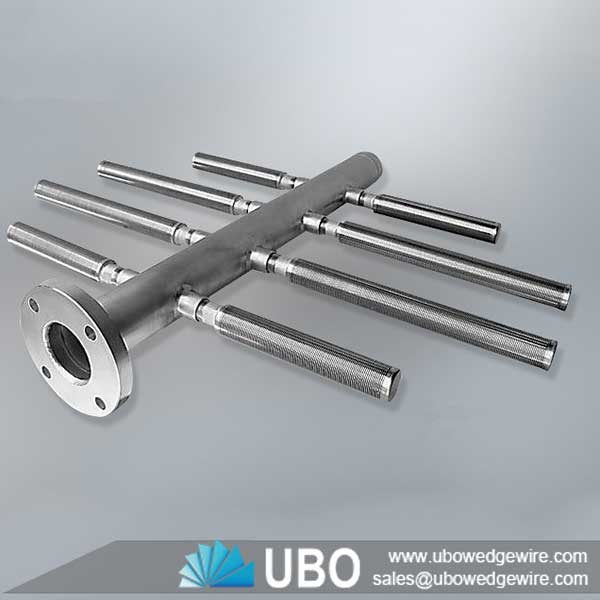

wedge wire header lateral

More Views

wedge wire header lateral

Category:Profile Screen Laterals
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:Used for bottom strainer, 20 pcs of small filter nozzles attached to plate steel

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire header lateral

Wedge wire header Lateral can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel.

All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

Surface treatment: polishing, chroming

Product structure:  wedge wire screen, pipe, cap.

Characteristics of wedge wire header lateral

-- Excellent roundness

-- Very good slot width precision

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

Applications of wedge wire header lateral

v wire screen header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

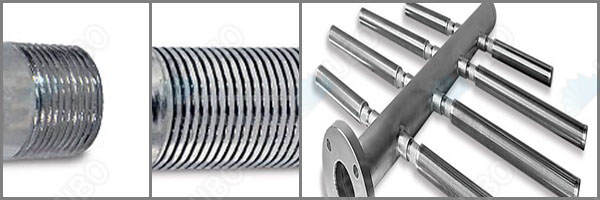

    Wedge wire header Lateral

UBO is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral etc. Welcome to contact us for more information and cooperation.0086-0311-83289301

Specifications of wedge wire header lateral:

Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150

wedge wire header lateral for water treatment

Packaging and Transportation of wedge wire header lateral:

Packing
