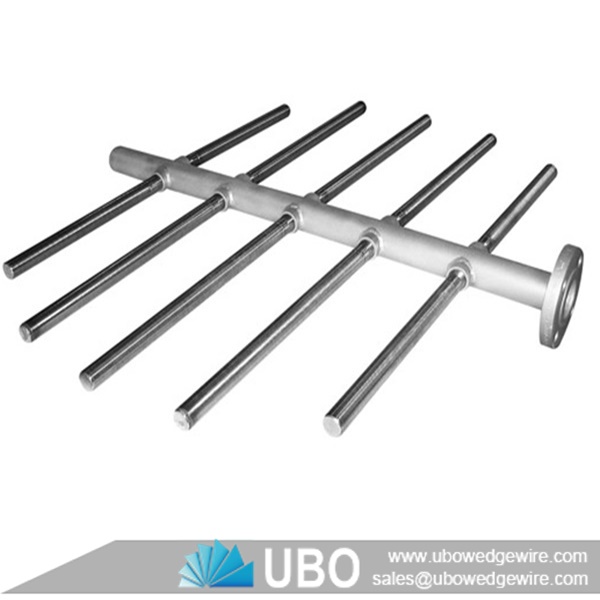

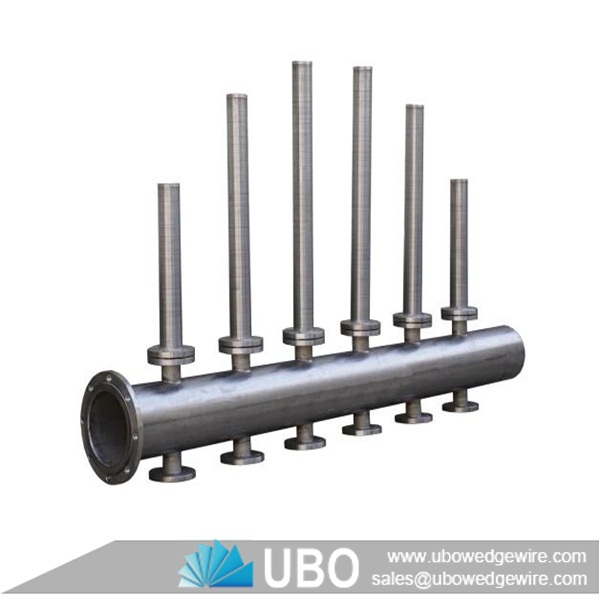

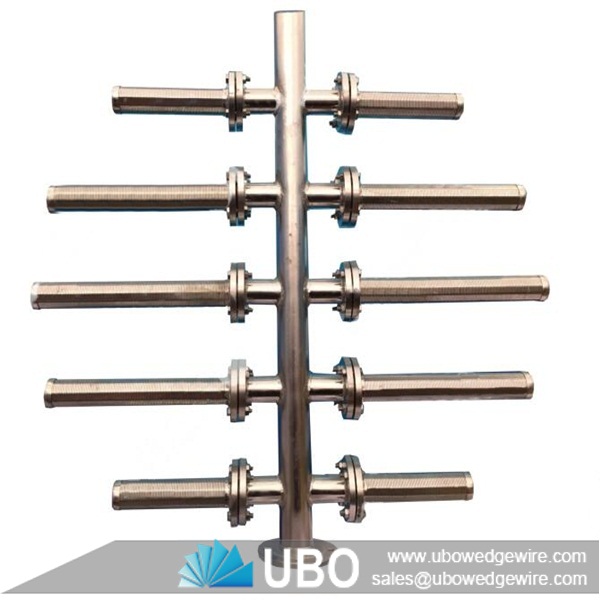

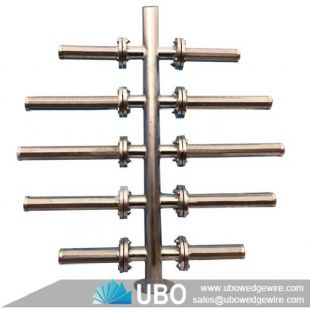

stainless steel wedge wire header lateral

More Views

stainless steel wedge wire header lateralstainless steel wedge wire header lateralstainless steel wedge wire header lateral

stainless steel wedge wire header lateral

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the stainless steel wedge wire header lateral

Stainless steel lateral arm, mainly used in water input device, resin sprayer fittings, water distributor, center distribution drainage device, screen lateral systems.

These assemblies consist of a series of screen laterals connected to either a central header pipe or a hub. They are designed for effective media retention in a wide range of applications, including ion exchangers, clay and sand filtration applications, and carbon towers.

Features of stainless steel wedge wire header lateral

Lateral spacing, length, diameter and slot opening sizes are based on individual system needs: slot size 0.002 in. (0.05 mm) and up in
increments of 0.0004 in. (0.01 mm) and diameter from 0.787 in. (20 mm) up
Assemblies are typically made with type 304SS, 316LSS, or other exotic alloys
Connections of the laterals can be threaded fittings, couplings or flanges

Application of stainless steel wedge wire header lateral

hub and header lateral screen consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

stainless steel wedge wire header lateral

The specifications of the stainless steel wedge wire header lateral:

Material:stainless steel

Type:wedge wire screen header lateral

Type

Slots

ФA

ФB

L1

L2

L3

Pipe no

Flange1 DN

Flange2 DN

Length L

99,127,157,

199,224,254,

284,326,351,

538,508,607,

635,665,707,

792,834,861,

889,919,

1016,1046,

1088

AME

0.05

0.1

0.2

0.3

0.5

1

32

40

57

76

89

76

89

108

133

159

219

1100

1280

1500

1700

1800

2000

2500

3200

420

480

600

680

720

1100

1280

1500

1700

1800

6

8

10

12

25

32

40

50

65

80

50

65

80

100

125

150

The Packaging and Transportation of the stainless steel wedge wire header lateral:



transportation
