Quality Wedge Wire Screen Manufacturer in China

stainless steel header lateral system

More Views

stainless steel header lateral systemstainless steel header lateral systemstainless steel header lateral system

stainless steel header lateral system

Category:Profile Screen Laterals
Material:stainless steel
Properties:wedge wire screen
Application:the environmental protection, running water treatment, the petroleum industry, the petroleum product terminal filters

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

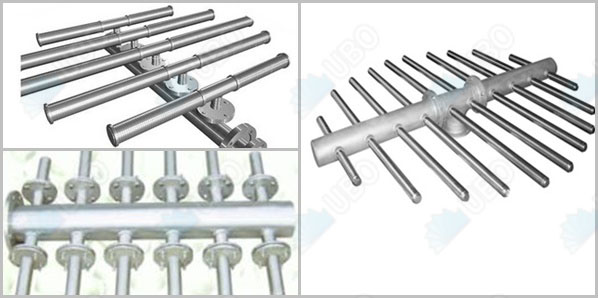

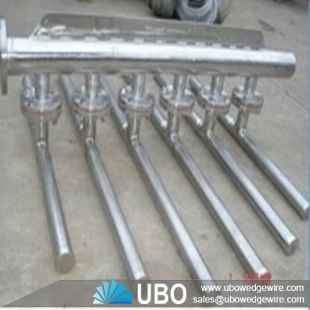

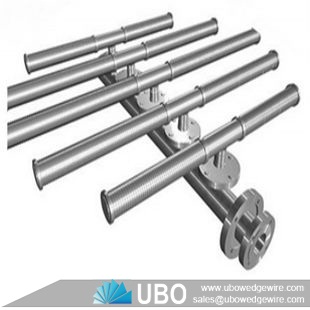

Details of stainless steel header lateral system

The stainless steel header lateral system for the treatment of process water such as in ‘Ion Exchange’ and in the process of removing organic matter, Completion Products offers products such as the Header-Laterals Systems to uniformly collect and distribute process flow. Sizing of both the main header pipe and the screen laterals are based on recommended through-pipe and slot opening velocities to ensure higher efficiency and lower pressure drop. Sizing of the slot size is also critical to ensure that there is no resin/media leakage. The screen laterals (screen-based or screen + drilled pipe-base) are removable and can be designed with either a flange or threaded nipple connection.

Each of our Wedge Wire Screen Header Lateral For Drainage Systems are carefully designed from the specified design conditions including the volumetric flow rate, allowable pressure drop through the screen, resin/media to be retained and minimum open area to list a few. Therefore it is very important to work closely with Completion Products during the design and engineering stage to ensure that all screen characteristics are accommodated.

Usage of stainless steel header lateral system

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

        header lateral

Specifications of stainless steel header lateral system:

header lateral

Type
Slots mm
ФA mm
ФB mm
H mm
L1 mm
L2 mm
Flange1    DN
Flange2 DN
AMD
0.05
0.1
0.2
0.3
0.5
1
45
57
76
89
108
133
159
219
108
133
159
219

200 250
275 300
325 350
400
420 480
600 680
720
1100
1280
1500
1700
1800
25
32
40
50
65
80
100
125
150
200
50
65
80
100
125
150
200


Packaging and Transportation of stainless steel header lateral system:

Packaging Details: waterproof film into the wooden case in the container;

waterproof film in bulk in the container;

as per customer's requirements.

Delivery Detail: Based on the quantity to supply exact delivery time

header lateral
