Stainless Steel Wedge wire Header Tubing
Category: | Profile Screen Laterals |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge wire screen |
Application: | water desalination treatment, running water treatment, water softening treatment; the petroleum industry |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel Wedge wire Header Tubing

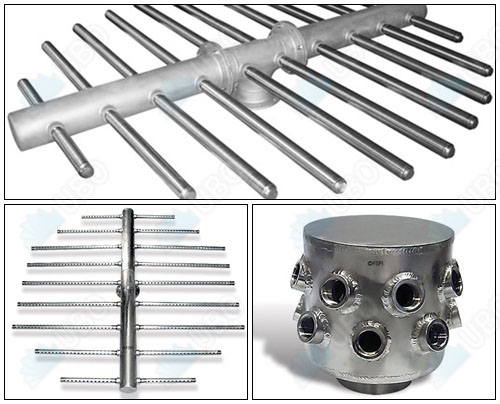

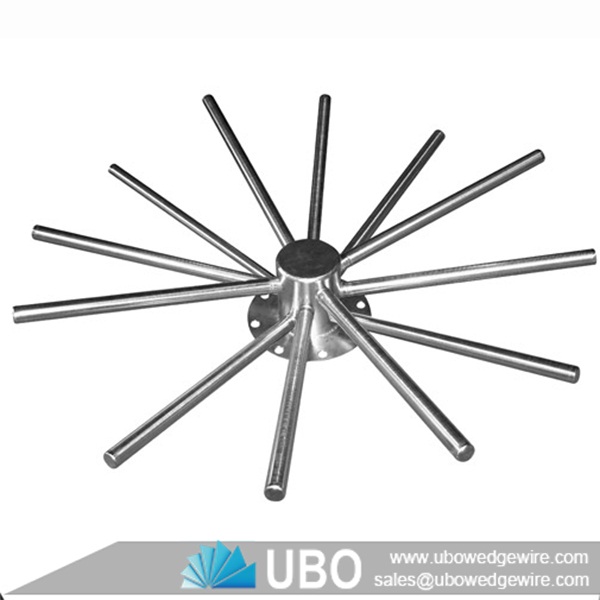

Hub Laterals can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header laterals design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.
Applications for Stainless Steel Profile Header Laterals:
Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.
Design of Stainless Steel Profile Header Laterals:

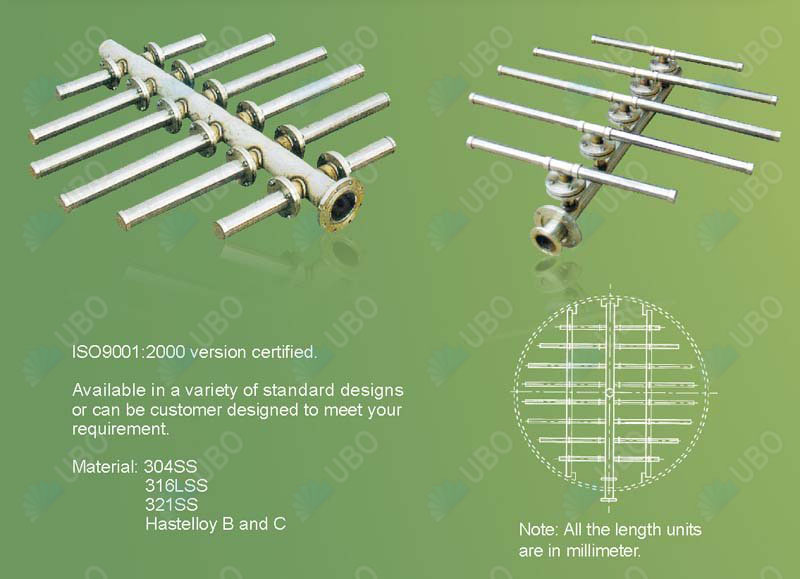

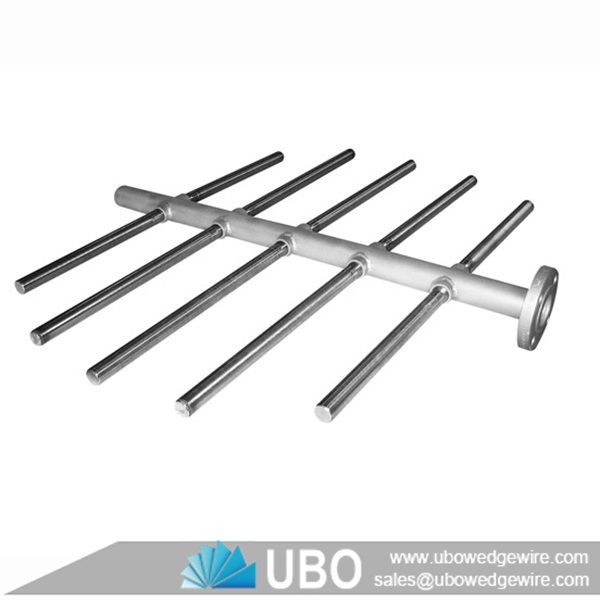

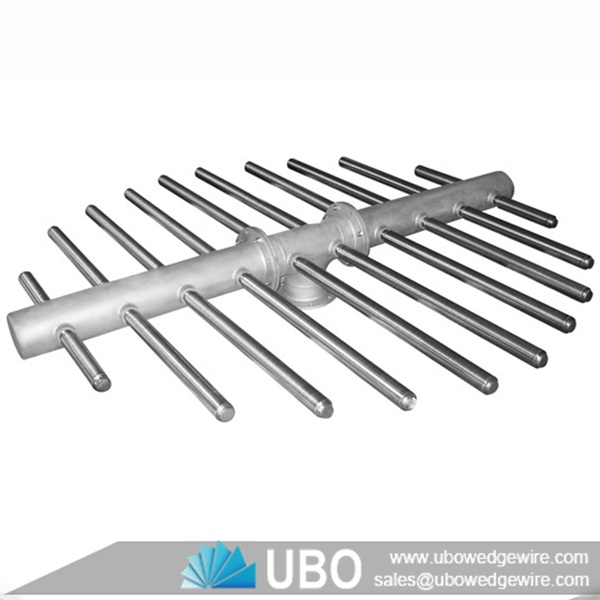

Header laterals design is also available for flat bottom vessel distributor or collector application. System can be designed to accommodate side, center, top or bottom inset piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Connections of the laterals can be flanged or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and filtration applications, carbon towers and power plants with water systems.
Specifications of Stainless Steel Wedge wire Header Tubing:
Length L1
|
Slot mm
|
AMD 4
|
AMD 6
|
AME 6
|
AMD 8
|
|
|
Ф=MM
|
|||
82
|
0.05
0.1
0.2
0.3
0.5
1
|
258
|
259
|
258
|
|
113
|
316
|
321
|
316
|
|
|
144
|
374
|
383
|
374
|
|
|
175
|
432
|
445
|
432
|
|
|
206
|
491
|
507
|
491
|
520
|
|
237
|
549
|
569
|
549
|
580
|
|
268
|
607
|
631
|
607
|
640
|
|
299
|
665
|
693
|
665
|
699
|
|
330
|
724
|
755
|
724
|
759
|
|
361
|
782
|
817
|
782
|
819
|
|
392
|
840
|
879
|
840
|
879
|
|
423
|
898
|
941
|
898
|
939
|
|
454
|
957
|
1003
|
957
|
999
|
|
485
|
1015
|
1065
|
1015
|
1059
|
|
516
|
1073
|
1127
|
1073
|
1119
|
|
547
|
1131
|
1189
|
1131
|
1179
|
|
578
|
1189
|
1251
|
1189
|
1239
|
|
609
|
1247
|
1313
|
1247
|
1299
|
|
640
|
|
|
|
1359
|
|
671
|
|
|
|
1419
|
|
702
|
|
|
|
1479
|
|
733
|
|
|
|
1539
|
