Pipe Based Lateral Screen for exchange resin

More Views

Pipe Based Lateral Screen for exchange resinPipe Based Lateral Screen for exchange resinPipe Based Lateral Screen for exchange resin

Pipe Based Lateral Screen for exchange resin

Category:Profile screen laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Profile screen laterals
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Pipe Based Lateral Screen for exchange resin

   SS Screen Hub and Header Lateral is made of V shaped stainless steel wire. It has flow area. water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Application for Pipe Based Lateral Screen for exchange resin:

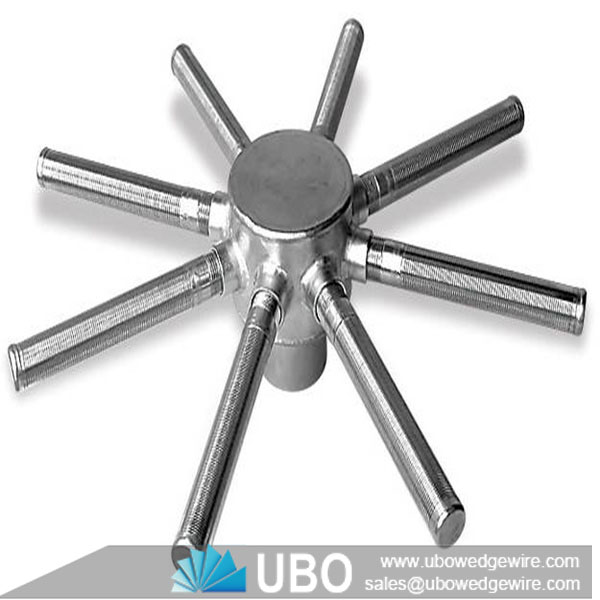

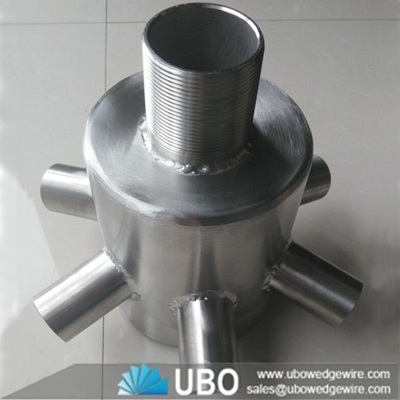

hub and header lateral screen consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features for Pipe Based Lateral Screen for exchange resin:

1.Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.

Pipe Based Lateral Screen for exchange resin

The specifications of the Pipe Based Lateral Screen for exchange resin:

Pipe Based Lateral Screen for exchange resin



Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length up to 6m
Diameter from 25mm to 1200mm.

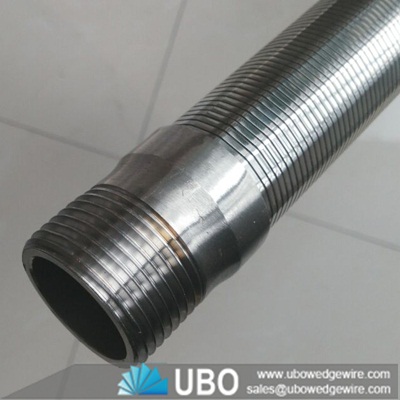

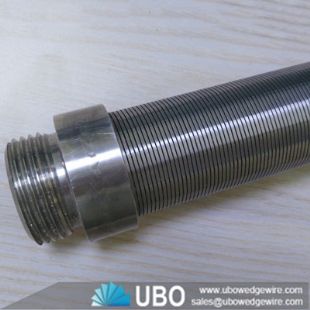

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Pipe Based Lateral Screen for exchange resin:

Pipe Based Lateral Screen for exchange resin

Pipe Based Lateral Screen for exchange resin
