Header lateral screen

More Views

Header lateral screenHeader lateral screenHeader lateral screen

Header lateral screen

Category:Profile screen laterals
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

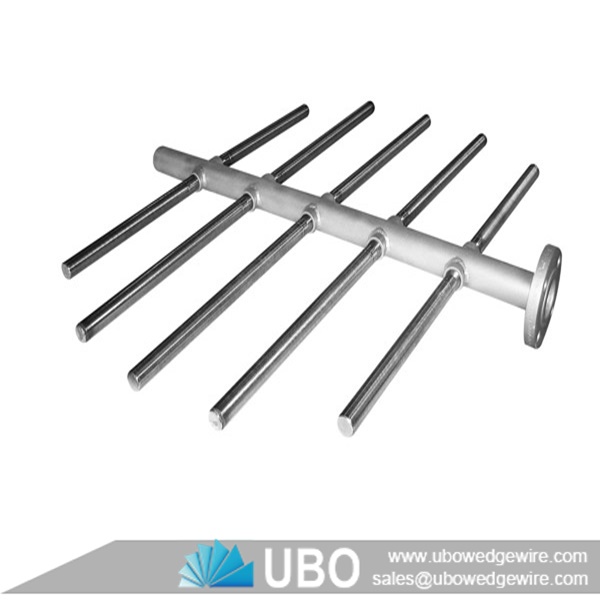

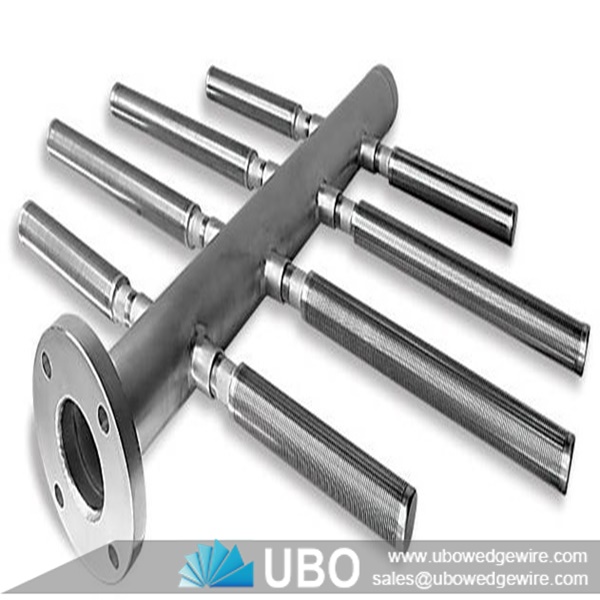

Detailed description of the Header lateral screen

Header lateral screen,hub lateral,collector,distributor .They Provide even distribution or collection and avoid flow/pressure concentrations such as dead zones, wall effects or channeling.

Header lateral screen distributor can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header laterals design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

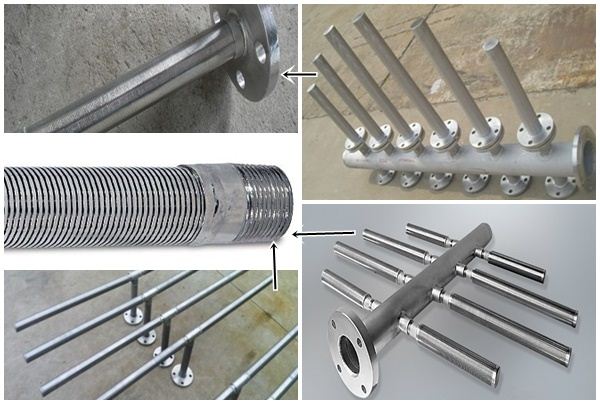

Available as both Header Lateral and Hub lateral assemblies, wedge wire screen laterals and pipe based laterals can be connected to headers or hubs by the following methods : -standard NPT threaded connections -flanged connections. fabricated or ANSI -welded as one assembly Laterals are available in all standard pipe and tube outside diameters. Available in a variety of standard designs or can be customer designed to meet your requirements

Features of Header lateral screen

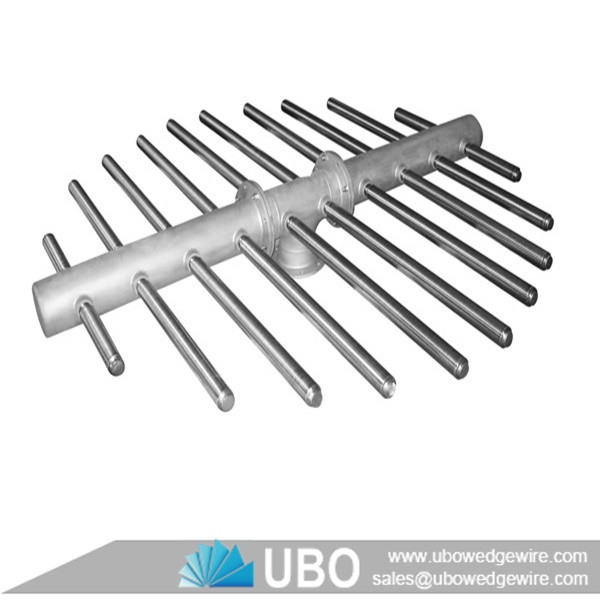

UBO technology can also make several kinds of lateral collector / center distribution deainage device: Crossing type,fish bone lateral type and straight type.the characterics of our center distibution drainage device:bigger circulation area,Water distribution uniformity.High mechanical strength.Thermal enduance.Resistance to pressure,Anti-aging,Resistance to corrosion.The size for slot can be decided by the size of resin.


Different Styles and specification could be customized as clients' requirement ! We supply professional drawings and confirm all the specification as per item.

         Header lateral screen

The specifications of the Header lateral screen:

Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150



Also special specification could be customized

The Packaging and Transportation of the Header lateral screen:

transport
