stainless steel filter nozzles

More Views

stainless steel filter nozzlesstainless steel filter nozzlesstainless steel filter nozzles

stainless steel filter nozzles

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

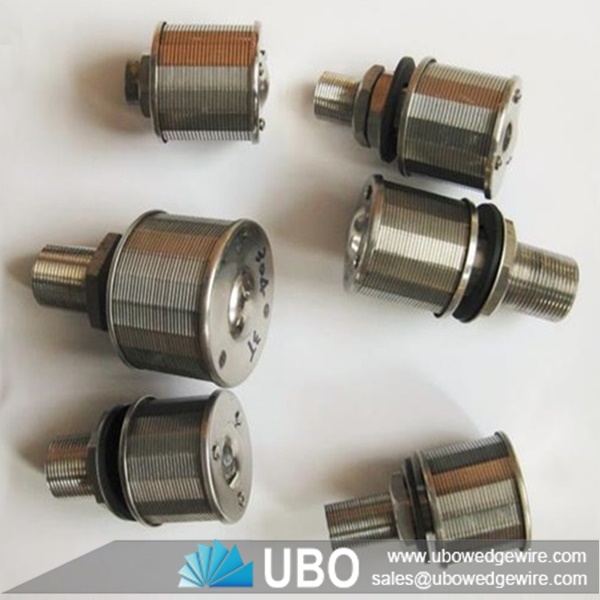

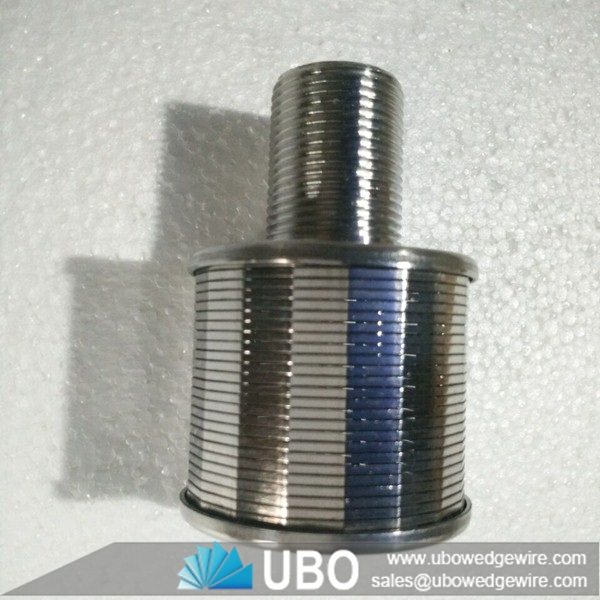

Detailed description of the stainless steel filter nozzles

Stainless steel filter nozzles manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

stainless steel filter nozzles

Advantages of stainless steel filter nozzles

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).

Application of stainless steel filter nozzles

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

stainless steel filter nozzles

The specifications of the stainless steel filter nozzles:

stainless steel filter nozzles



Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5..

The Packaging and Transportation of the stainless steel filter nozzles:

stainless steel filter nozzles

stainless steel filter nozzles
