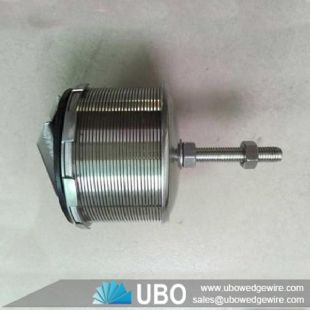

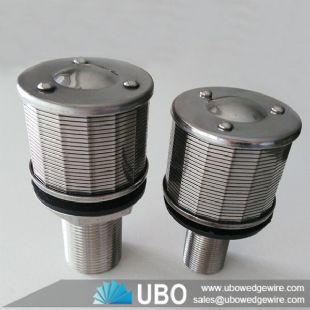

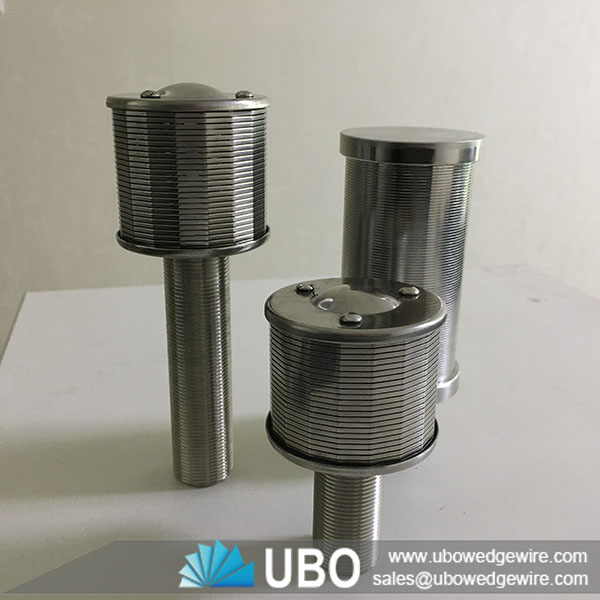

Wedge v wire filter nozzle screen strainer

More Views

Wedge v wire filter nozzle screen strainerWedge v wire filter nozzle screen strainerWedge v wire filter nozzle screen strainer

Wedge v wire filter nozzle screen strainer

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge v wire filter nozzle screen strainer

Wedge v wire filter nozzle screen strainer is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Wedge v wire filter nozzle screen strainer

Application of Wedge v wire filter nozzle screen strainer

Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Feature of Wedge v wire filter nozzle screen strainer

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.

Wedge v wire filter nozzle screen strainer

Wedge v wire filter nozzle screen strainer

Specifications of Wedge v wire filter nozzle screen strainer:

Wedge v wire filter nozzle screen strainer



Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5..



Wedge v wire filter nozzle screen strainer

Packaging and Transportation of Wedge v wire filter nozzle screen strainer:

Wedge v wire filter nozzle screen strainer
