Wedge Wire Sand Filter Nozzles

More Views

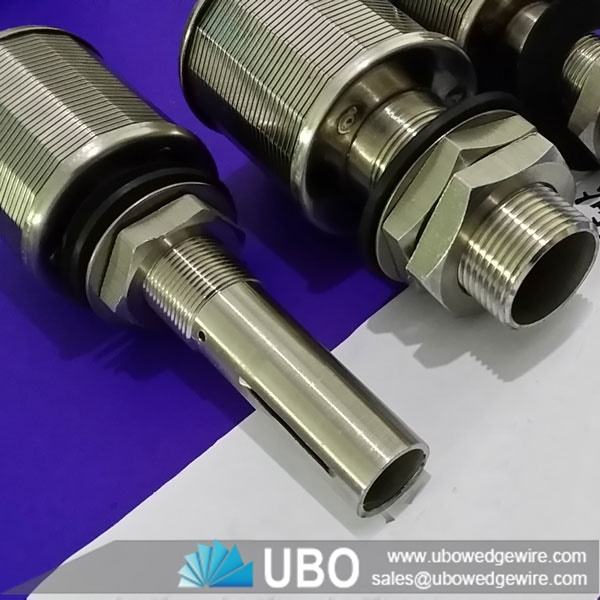

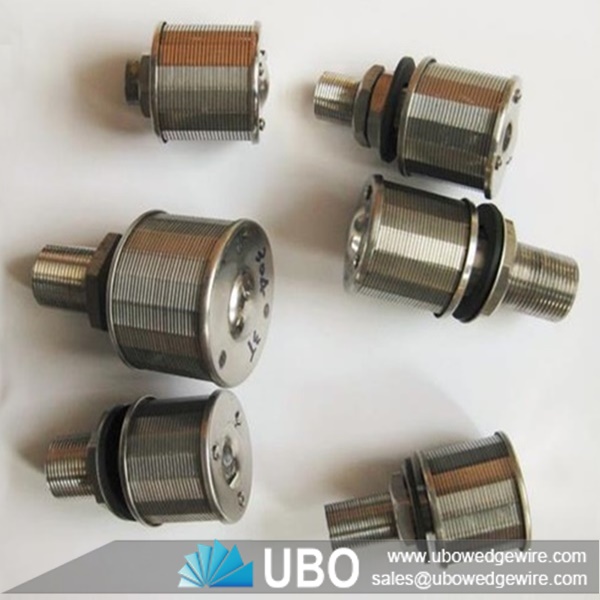

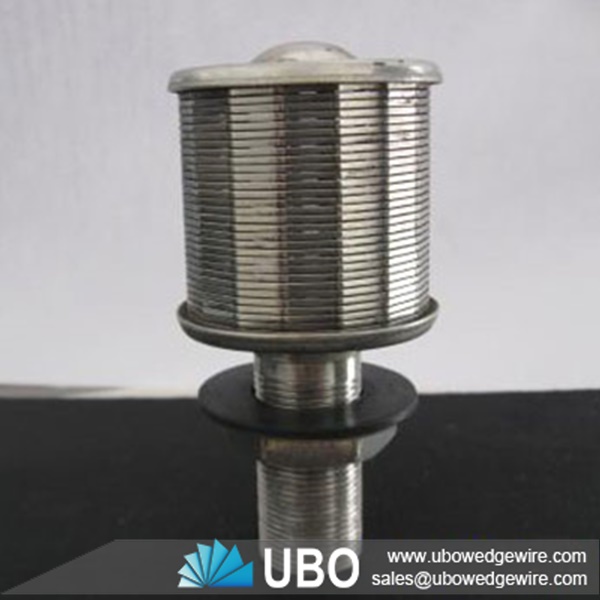

Wedge Wire Sand Filter NozzlesWedge Wire Sand Filter NozzlesWedge Wire Sand Filter Nozzles

Wedge Wire Sand Filter Nozzles

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plan

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Sand Filter Nozzles

UBO has a wide selection of SS wedge wire screen filter nozzle which are available with the following configurations: Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Water Treatment Plants (WTP) for producing drinking water; Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.


We supply high quality various specifications Sand Filter Nozzle, Cylinder Filter Nozzle,filter nozzles and tower packings/fillings for waste water treatment.

Filter Nozzle, Cylinder filter nozzle,tower packing for waste water treatment, and Sand filter.



Application of Wedge Wire Sand Filter Nozzles



Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.



Features of Wedge Wire Sand Filter Nozzles



Wedge Wire sand filter nozzles have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

Specifications of Wedge Wire Sand Filter Nozzles:



NO.



    Type



 Ton



  Slot Opening



          Size

  0.2-0.25mm slot opening

    Area of through-flow

    mm²(reference)

  D

  L1

   L

 M



1

 TYS45-1-C

 0.5

 0.2-0.5

  45

  45

  95

 24

      500

2

 TYS53-2-B

  1

 0.2-0.5

  53

  45

  100

 24

      570

3

 TYS53-2-C

 1.5

 0.2-0.5

  53

  50

  110

 32

      700

4

 TYS57-3-B

  2

 0.2-0.5

  57

  45

  110

 32

      600

5

 TYS70-4-B

  3

 0.2-0.5

  70

  55

  120

 32

      1000

Packaging and Transportation of Wedge Wire Sand Filter Nozzles:

transportation
