Water softening treatment stainless steel wedge wire screen filter nozzle

More Views

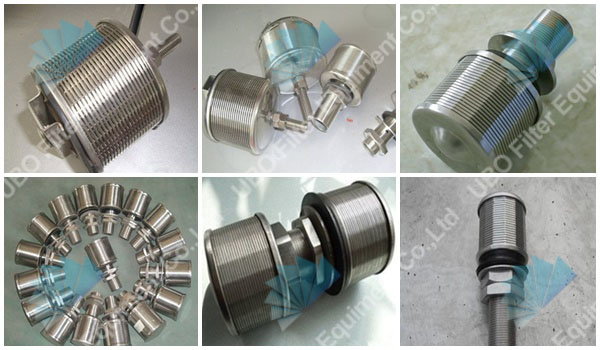

Water softening treatment stainless steel wedge wire screen filter nozzleWater softening treatment stainless steel wedge wire screen filter nozzleWater softening treatment stainless steel wedge wire screen filter nozzle

Water softening treatment stainless steel wedge wire screen filter nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Water softening treatment stainless steel wedge wire screen filter nozzle

Water softening treatment stainless steel wedge wire screen filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.

Water softening treatment stainless steel wedge wire screen filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

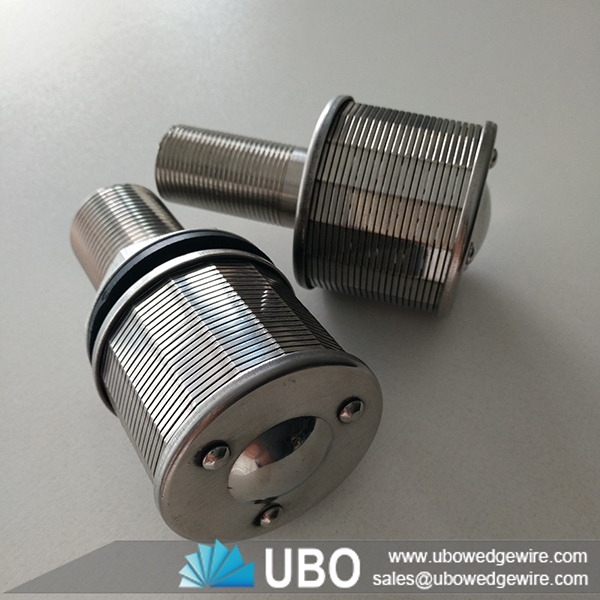

Water softening treatment stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> filter nozzle

Application of Water softening treatment stainless steel wedge wire screen filter nozzle

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages of Water softening treatment stainless steel wedge wire screen filter nozzle

Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application / food industry suitability
Low pressure drop
High flow rate

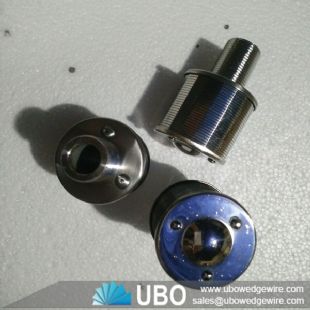

Water softening treatment stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> filter nozzle

The specifications of the Water softening treatment stainless steel wedge wire screen filter nozzle:

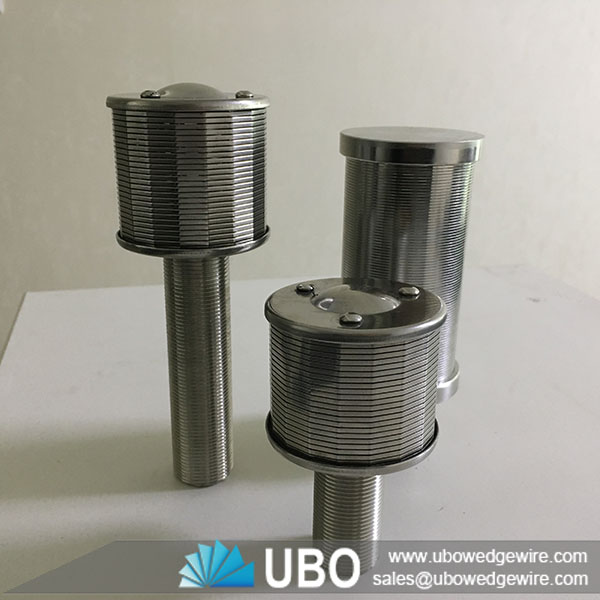

Water softening treatment stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> filter nozzle


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000





















The Packaging and Transportation of the Water softening treatment stainless steel wedge wire screen filter nozzle:

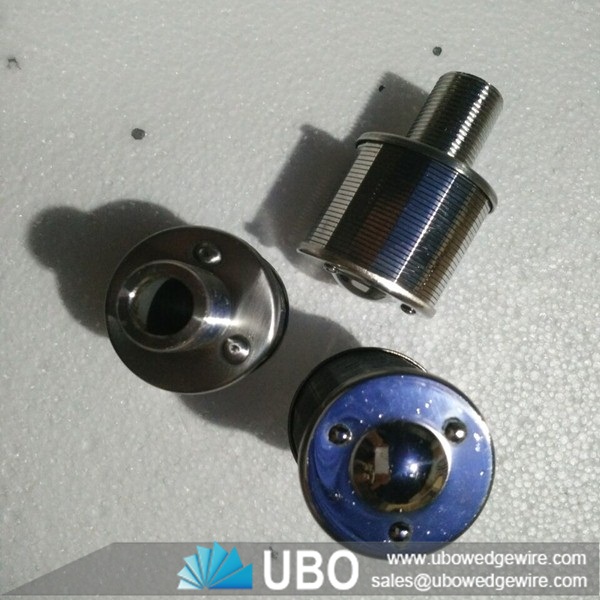

Water softening treatment stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> filter nozzle
