AISI304/316 customized screen nozzle filter wedge wire screen

More Views

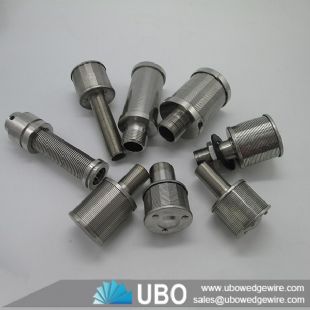

AISI304/316 customized screen nozzle filter wedge wire screenAISI304/316 customized screen nozzle filter wedge wire screenAISI304/316 customized screen nozzle filter wedge wire screen

AISI304/316 customized screen nozzle filter wedge wire screen

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the AISI304/316 customized screen nozzle filter wedge wire screen

AISI304/316 customized screen nozzle filter wedge wire screen which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.

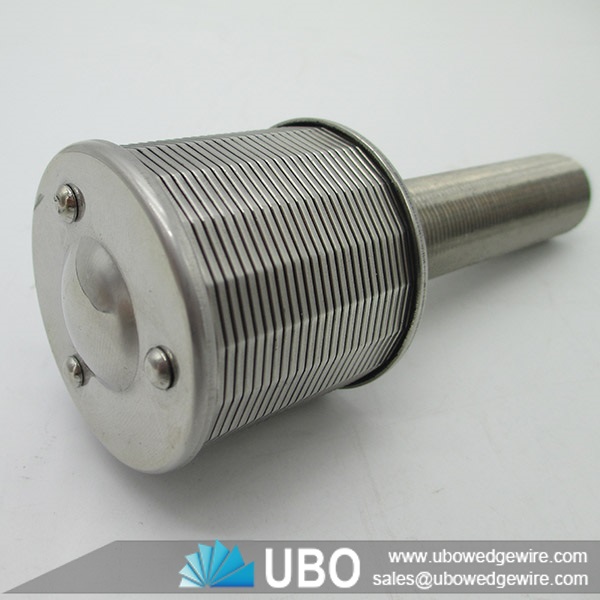

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>

Advantages of AISI304/316 customized screen nozzle filter wedge wire screen

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Applications of AISI304/316 customized screen nozzle filter wedge wire screen

treatment of drinking water, demineralised water production, urban and industrial waste water treatment, filtration of river/well water for irrigation, water for swimming pools, steel works, food production, etc.

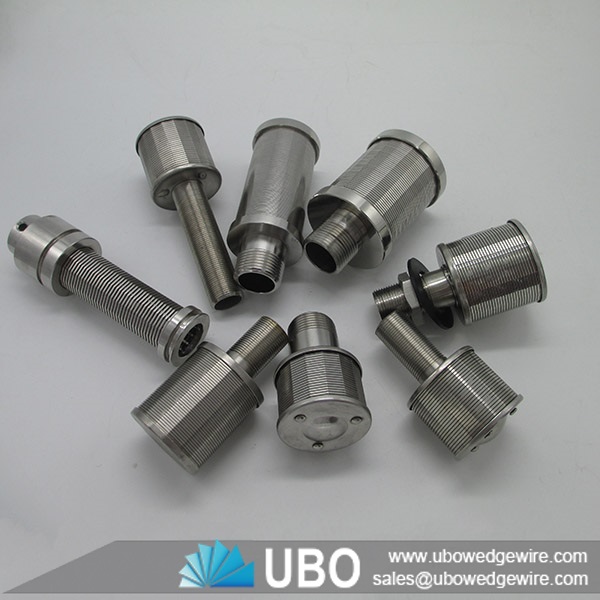

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>

The specifications of the AISI304/316 customized screen nozzle filter wedge wire screen:

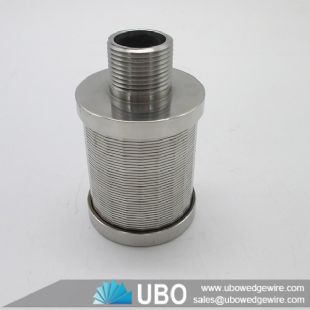

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>



Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the AISI304/316 customized screen nozzle filter wedge wire screen:

AISI304/316 customized screen nozzle filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a>
