AISI 304 water well screen johnson type filter nozzle strainer

More Views

AISI 304 water well screen johnson type filter nozzle strainerAISI 304 water well screen johnson type filter nozzle strainerAISI 304 water well screen johnson type filter nozzle strainer

AISI 304 water well screen johnson type filter nozzle strainer

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI 304 water well screen johnson type filter nozzle strainer

AISI 304 water well screen johnson type filter nozzle strainers are manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.

According to different applications, the wedge wire nozzle can be divided into two main types, you can choose them according to your requirements.

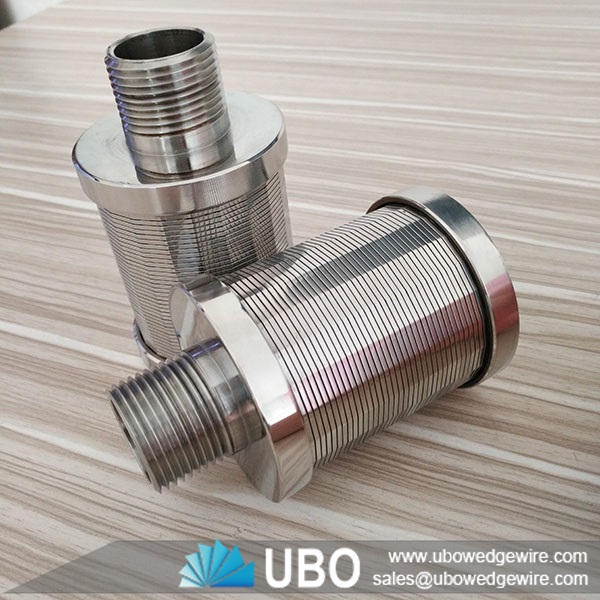

Long typre wedge wire nozzle.

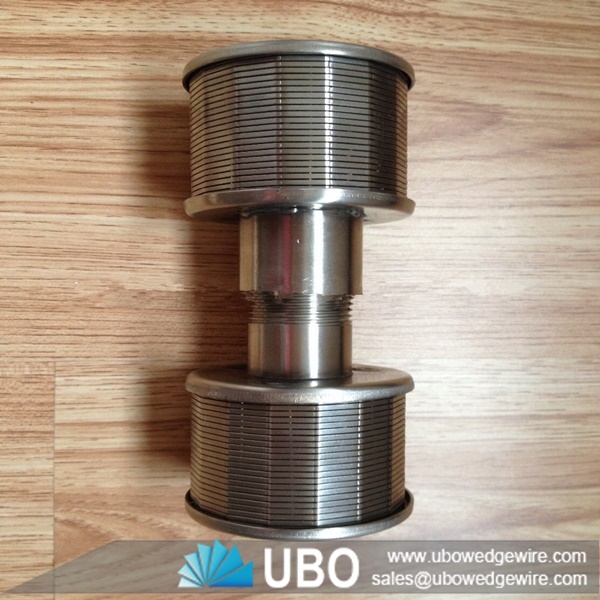

Double head wedge wire nozzle.

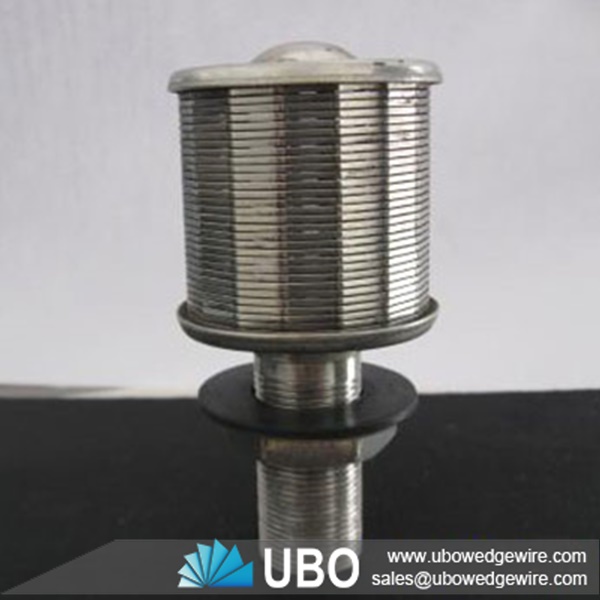

Single flow rating wedge wire screen

AISI 304 water well screen johnson type filter nozzle strainer

Application of AISI 304 water well screen johnson type filter nozzle strainer

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages of AISI 304 water well screen johnson type filter nozzle strainer

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as require

AISI 304 water well screen johnson type filter nozzle strainer

AISI 304 water well screen johnson type filter nozzle strainer

AISI 304 water well screen johnson type filter nozzle strainer

Specifications of AISI 304 water well screen johnson type filter nozzle strainer:

AISI 304 water well screen johnson type filter nozzle strainer

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement
