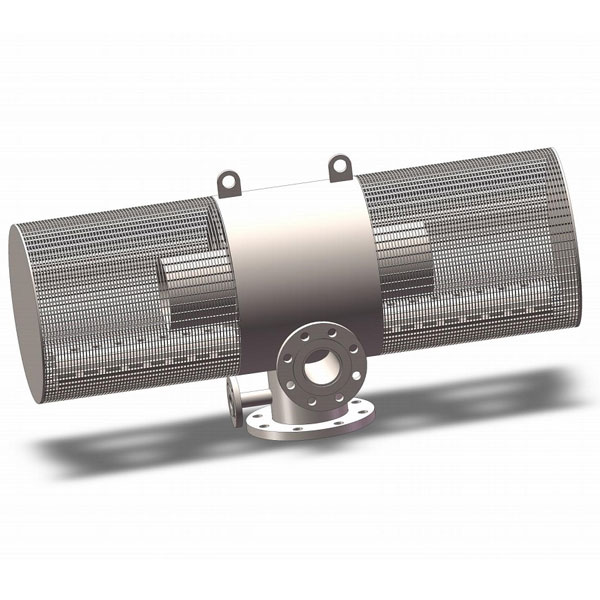

304 stainless seel intake screen
Category: | Filter Nozzle |
---|---|
Material: | stainless steel304,316,316L |
Properties: | wedge wire screen |
Application: | water filtration, oil,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

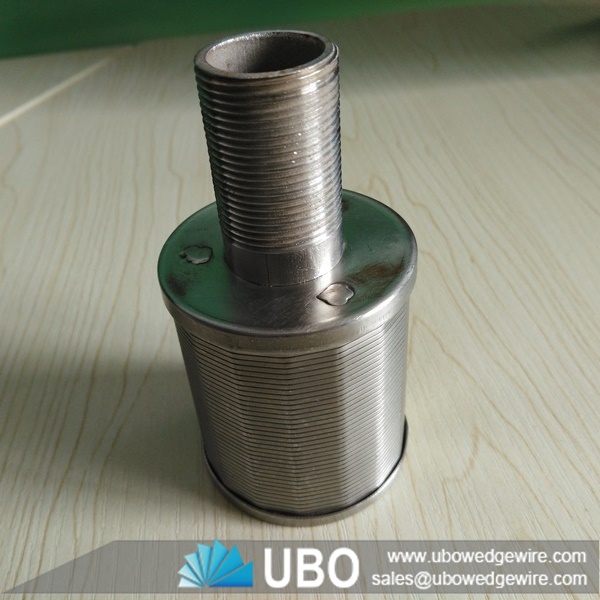

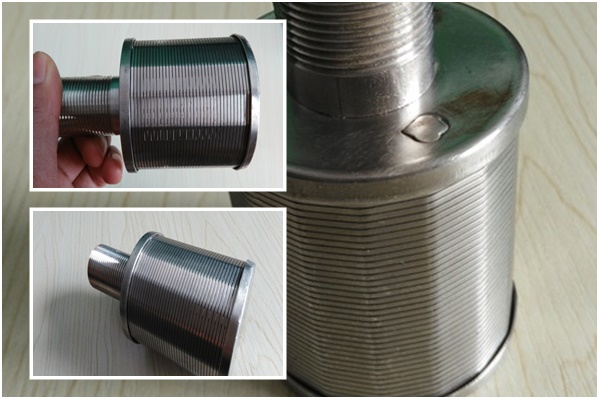

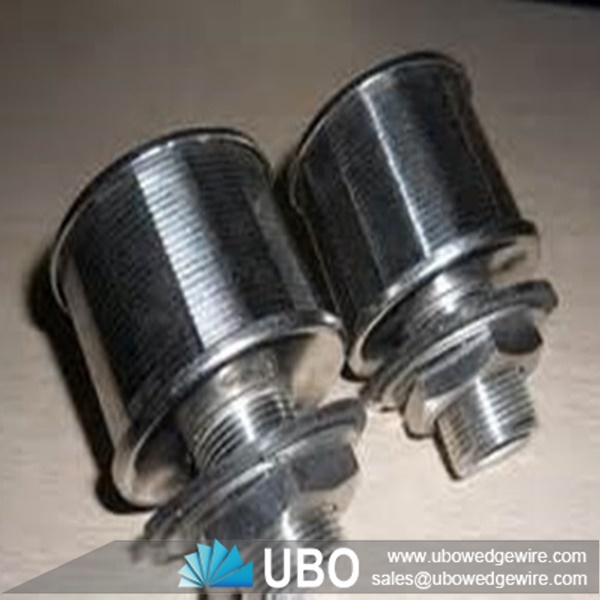

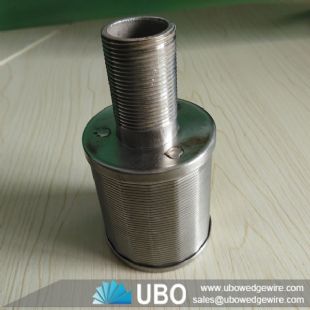

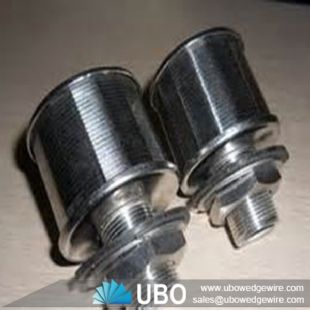

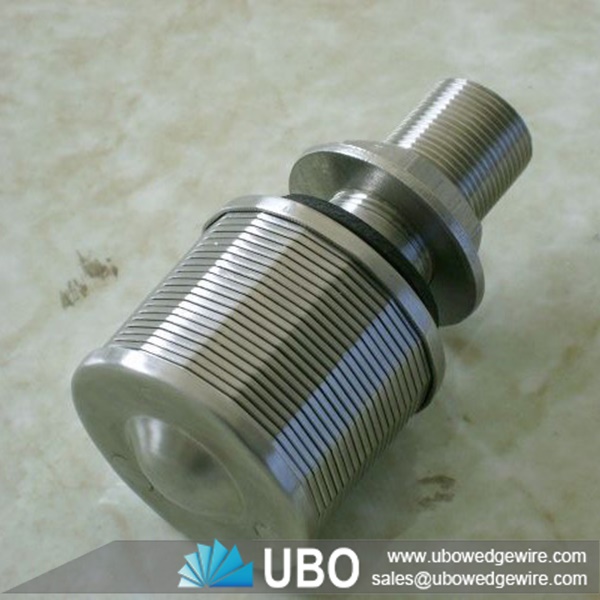

Details of 304 stainless seel intake screen
The 304 stainless seel intake screen can filter a liquid or gas and retain a filtering medium (sand, catalyst, resin, zeolite, activated carbon, etc). The principle consists of distributing nozzles over a vessel floor so as to control the flow during collection or distribution.
Filter nozzles provide an excellent economic compromise in combining the benefits of a completely welded structure to withstand very high stress, provide an anti-clogging surface and excellent corrosion resistance.
Advantages of 304 stainless seel intake screen
Excellent roundness
Very good slot width precision
High mechanical load capacity
Application of 304 stainless seel intake screen
The filter wedge wire screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
Specifications of 304 stainless seel intake screen:
Material:stainless steel
Type filter tube
No. |
Type |
Ton |
Slot
Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2 (reference) |
|||
D |
L1 |
L |
M |
|||||
1 |
TYS45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
2 |
TYS53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
3 |
TYS53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
4 |
TYS57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
5 |
TYS70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
